Fp2600 Class Td Switching Power Amplifier 220V European Power Plug

Product Description

fp2600 Class TD Switching Power Amplifier 220V European Power Plug
Product Description We use large current rectifier bridge to make sure the unobstructed supply current. Using independent shielding way in the high-voltage power part, able to reduce the interference to audio signal to the lowest level, and make sure the higher safety for electricity.
We use high performance audion; make the system can bear larger current, with better dynamic and safety. Each audion has to be checked strictly, make sure the consistency of amplifier and minimum distortion.
We use the way of mainboard power-supply for the process the audio signal, able to make the voltage more stable, clear and thick, and sounds much better. Reasonable wiring can reduce the interference between channels and input-output.
Product Features 1. Very high power and channel density;
2. Class TD amplifier topology;
3. Regulated Switch Mode Power Supply;
4. Efficient cooling system;
5. Adjustable parameters;
6. Comprehensive protection and warning;
7. XLR input connectors;
8. Heavy-duty binding post or Speakon output connectors.
Product Application 1. Stage Concert;
2. Conference centres;
3. Museums;
4. Sports venues;
5. Home theaters;
6. Churches;
7. Shopping malls,
8. Restaurants.
Product Parameters

ITEM	fp2600 Class TD Power Amplifier 220V European Power Plug
Output Power	20-34KHz,1W with 1KHz
8Ω Stereo Power(RMS)	750W x 2
4Ω Stereo Power(RMS)	1150W x 2
2Ω Stereo Power(RMS)	1650W x 2
8Ω Bridged Power(RMS)	2300W
4Ω Bridged Power(RMS)	2800W
Frequency Response(+0/-0.3dB, 1W/8Ω)	20Hz-20KHz ±0.5dB
THD+N	10KHz <0.05%
Signal-to-Noise Ratio	<-110dB
	20V/uS
Input Connectors (per channel)	Female XLR(PIN+2, Configurable for pin 3+). TRS(tip+)
Output Connectors (per channel)	5-way binging posts or Speakon connectors(market dependent)
Class	TD
TourClass Protection	turn-on/off transient, current inrush, sub/ultransonic input
Voltage Gain(dB)	20,23,26,29,32,35,38,41, dB selectable
Cooling	4 pcs variable speed DC fans , better than conventional cooling
Controls	Front-panel:2 attenuators, power switch, Rear panel, signal ground lift & mode switches
Dimensions(WXHXD)	483x88x396mm
Packing dimension	580x180x560mm
Net weight(kg)	13
Gross weight(kg)	18

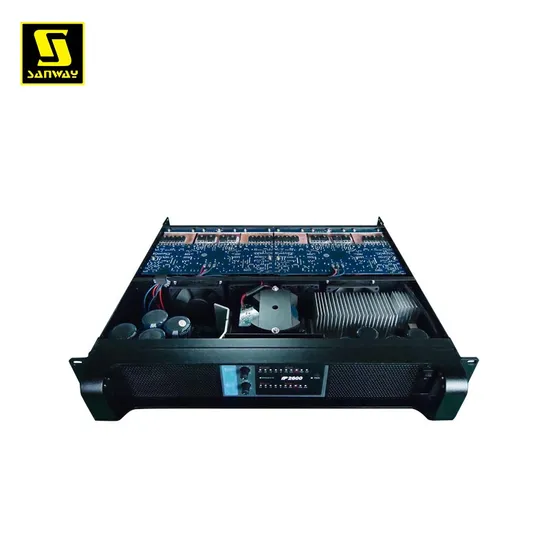

Detailed Photos
