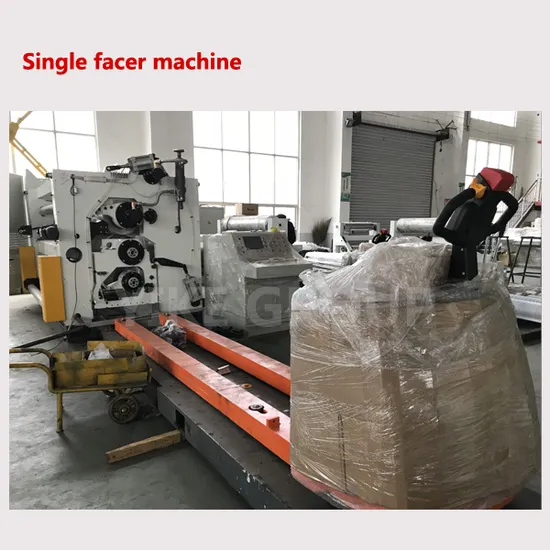

High Quality Corrugated Paper Making Machine Fingerless Single Facer Machine
| US$25,000.00-46,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SF-320C
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Recycled Material, Wood, Paper
Paper Thickness
Thick Paper
Packaging Type
Cartons
Local Service Location
None
Color
Yellow, Blue, White, Grey or Customized
After-Sales Service Provided
Online Support
Temperature Range
160-200ºC
Core Components
Other
Marketing Type
Ordinary Product
Brand Name
Yike
Driven Type
Electric
Transport Package
Plastic Film
Trademark
YIKE GROUP
Origin
China
HS Code
84413090
Production Capacity
100 Set Per Month
Product Description
high quality corrugated paper making machine fingerless single facer machinestructural feature:
adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.
High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.
install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.
Glue roller unit structure with the overall relocation,Maintenance can sway the machine at the overall maintenance,improve the working efficiency
technical parameters:
| effective width | 1800mm |
| operate direction | left or right(Determined in accordance with the customer's facility) |
| design speed | 150m/min |
| range of temperature | 160-180ºC |
| air source | 0.4-0.9Mpa |
| steam pressure | 0.8-1.3Mpa |
| equipment | Lmx3.5*Wmx1.7*Hmx2.2 |
Roller diameter parameters:
| corrugated roller | up¢313mm down¢316mm pressure roller:¢320mm |
| glue roller: | ¢240mm |
| fixed paste roller | ¢140mm |
| preheat roller | ¢402mm |
powered motor parameters:
| main frequency drive motor | 18.5KW |
| rated voltage 380V 50Hz Continuous (S1) working standard | |
| suction motor | 11KW rated voltage:380V 50Hz Continuous (S1) working standard |
| glue reducer | 100W rated voltage:380V 50Hz Continuous (S2) working standard |
| glue adjusting motor | 100W*2 rated voltage:380V 50Hz short(S2) working standard |
| glue pump motor | 2.2KW rated voltage:380V 50Hz Continuous (S1)working standard |
1,Special pulley crane configuration tile roll maintenance, convenient to use when maintenance tile roll, and fast.
2,Configuring an external guide pulley crane to lengthen the trip, in order to successfully remove the line outside the repair parts.
Mainly purchased parts, raw materials and origin:
| Name of main parts | Brands or place of origin | material |
| wallboard | Production by own | HT250 |
| Transmission box | hebei | QT450 |
| Corrugated roller | Alloy steel corrugated | |
| Rotation joint and Metal Hose | Fujian quanzhou yujie | |
| Main frequency motor | Hebei hengshui yongshun motor factory | |
| Reducer motor | Taiwan chengbang | |
| Bearings | HRB,ZWZ,LYC | |
| Corrugated roller and pressure roller bearing | America Timken | |
| Seat belt bearing | Zhejiang wuhuan | |
| High pressure fans | Shanghai yingfa motor factory | |
| cylinder | Zhejiang sonor CSM | |
| Solenoid valve | Zhejiang sonorCSM | |
| traps | beijing | Inverted bucket type |
| contactor | France | |
| button | Zhengtai NP2 series | |
| Air switch | French | |
| Position Sensor | JapanOMRON | |
| Frequency controller | Taiwan delta | |
| PLC | Taiwan delta | |
| Human Machine Interface | Taiwan WEINVIEW or MCGS | |
| Lose rubber pump | Hebei botou |
