Advanced Thermo Press Machine for PVC Floor Tile Production

Product Description

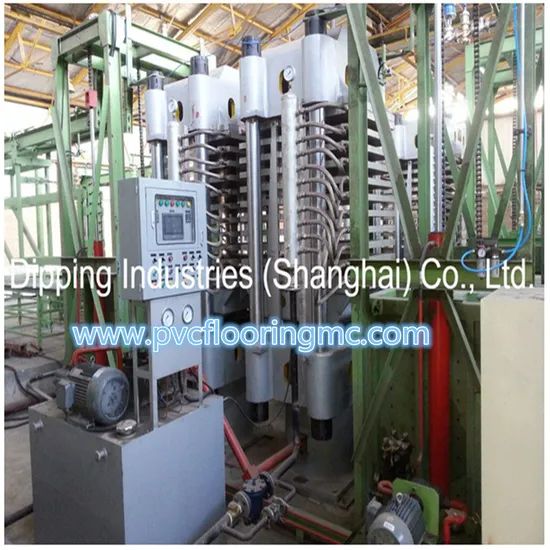

Thermo Press Machine
Thermo-press machine is one of the cores of the production, it determines the quality of the floor tile and the processing is not easy for adjusting. Also the worker must be experienced. Stacking the sheets is a skill-demanding work. The speed of the sheets stacking can leave a great impact on the production and the producing rate. There are several sheets which are compulsory: PET sheet, Canvas sheet, wearing layer, printed film and also base layer.
SLC-Q1100×1300×10 5.0MN Thermo-press machine
Specifications
1.Pressure: 5.0MN(500T)
2. Plate size 1100×1300 MM
3. Ram diameter ¢600MM
4. Distance between plate 75MM
5. Ram stroke 750MM
6. Operation tier 10 tier
7. Work pressure 18MPA
8. Control system PLC control
9. Types of heating by steam
Types of cooling by water
10. Structure 4 pillar type

Loading & Unloading System
The loading & unloading system is associated with the thermo press. It is an auxiliary device for imputing material into press and also takes it out. The graph showing above is the mechanical structure of the loading & unloading machine. Below there are some pictures illustrating the installed machine.
