High Power Winding Machine for Efficient Coil Production and Winding

Product Description

Experience unparalleled precision with the Electric Winding Machine (DLM-0866), a cutting-edge innovation by Dongguan Delong Automation Limited Company.
Introducing the DLM-0866 Coil Winding Machine - your go-to solution for high-efficiency coil production, engineered for excellence.
1. Advanced Array Motor: Designed to deliver superior performance and reliability, ensuring smooth operations.
2. State-of-the-art Automatic Computer Control: Seamlessly automate your processes with precision and ease.
3. Unmatched Quality: Crafted with excellence to meet the highest industry standards.
The DLM-0866 Large Winding Machine: Setting new benchmarks in coil winding technology.

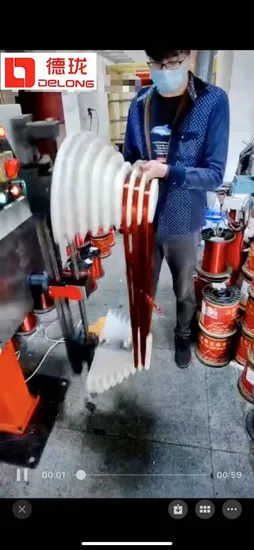

1. This horizontal and fully automatic winding machine, featuring serial parallel coil formers, is perfect for a wide array of applications including AC and DC motor stator coils and inductance coils.
2. Powered by a single-board computer, it utilizes a stepping motor to perform operations like zero resetting, traversing, and skipping with unrivaled accuracy, ensuring perfectly aligned coils.
3. With the user-friendly control panel, you can effortlessly set parameters such as wire diameter, number of turns, traverse and skipping distances, tailored to your specific needs.
Technical Parameter
Suitable Wire Diameter: Ranging from 0.1mm to 1.2mm, providing versatile winding capabilities.
Winding Width: Adjustable from 0 to 30mm to accommodate different winding requirements.
Winding Diameter: Flexible range of 25mm to 180mm for diverse coil sizes.
Effective Length of Series-mode Axis: 500-600mm, enhancing production efficiency.
Return Diameter of Former: 210mm to 280mm, offering a broad spectrum of operational settings.
Rotation Speed: A swift 3200 RPM for rapid and efficient winding operations.
Power Source: 220V 50Hz, ensuring compatibility with standard power systems.
Pressure of Air Supply: Operates at 0.5-0.8 MPa for optimal performance.
Power: Consumes 750W, balancing power and efficiency.
Dimension (L x M x H): Compact and robust design at 1450 x 912 x 1200mm, fitting seamlessly into your workspace.
Weight: Approximately 800kg, providing stable and durable operation.
