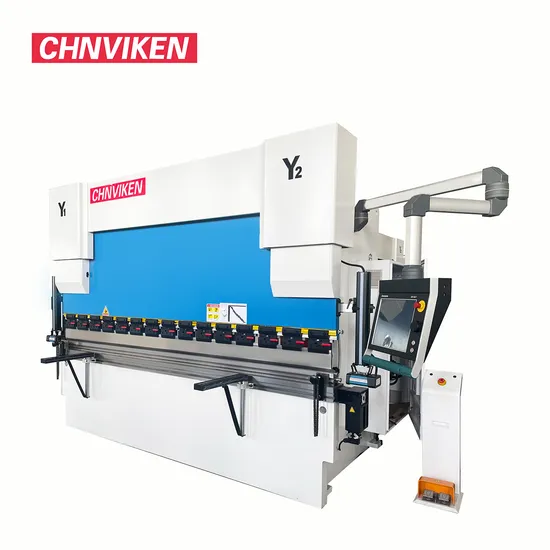

Viken Hot Cakes CNC Press Brake We67K 100t 3200mm with Da66t Controller System for Sheet Metal Bending in Aircraft Manufacturing
| US$15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WE67K-100T/3200
Warranty
5-year
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Nominal Pressure(T)
63 100 160 200 300 400 600
Length of Working Table (mm)
1600 2500 3200 4000 6000
Machine Type
Synchronized
Automatic Level
Fully Automatic
Controller System
Da66t
Open Height(mm)
320 360 440 530
Throat Depth(mm)
250 320 400
Main Motor Power(Kw)
5.5 7.5 11 15
Key Selling Points
High-Accuracy
Warranty of Core Components
2 Years
Year
2024
Transport Package
Plywood Box
Specification
25 CBM
Trademark
CHNVIKEN
Origin
Anhui, China
HS Code
8462299000
Production Capacity
1000 Sets/Year
Product Description
technical specificationDelem DA66T CNC Control system:
The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today's press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.
The touch screengives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.
The DA-66T offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever.DA-66T features
> 3D visualisation in simulation and production
> 17″ high resolution colour TFT
> Full Windows application suite
> Delem Modusys compatibility (module scalability and adaptivity
> USB, peripheral interfacing
> User specific application support within the controllers multitasking environment
> Sensor bending & correction interface.
| Bending Capability | 80/3200 | 100/3200 | 125/4000 | 160/3200 | 200/4000 | 300/4000 | 400/6000 |
| Nominal Force(KN) | 800 | 1000 | 1250 | 1600 | 2000 | 3000 | 4000 |
| Worktable Length(mm) | 3200 | 3200 | 4000 | 3200 | 4000 | 4000 | 6000 |
| Column Distance(mm) | 2565 | 2610 | 3450 | 2610 | 3140 | 3140 | 4740 |
| Throat Depth(mm) | 250 | 320 | 320 | 320 | 320 | 400 | 400 |
| Ram Stroke(mm) | 120 | 120 | 120 | 180 | 250 | 250 | 300 |
| Main Motor Power(KW) | 5.5 | 7.5 | 7.5 | 11 | 15 | 15 | 30 |
