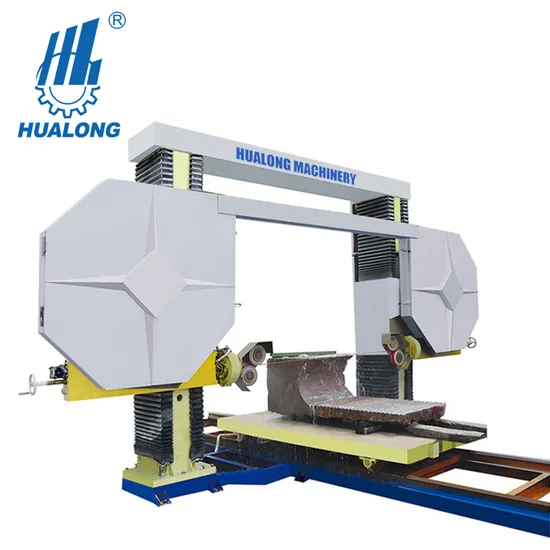

Hualong 5 Axis CNC Diamond Wire Saw Quarry Block Rock Stone Cutting Machine with Wire Rope Machine for Granite Marble Trimming Dressing

Product Description

Product Application
CNC Diamond Wire Cutting Machine HLSJ-2000 adopts CNC control, four-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on.

Technical Data for HLSJ-2000
Configuration	Diameter of wire	mm	8-10
	Length of wire	mm	15100
	Power of main motor	kw	11
Main Performance Parameters	Max. processing size	mm	2000 x 2000 x 1500
	Cuttting linear speed	m/s	25-45
	Water consumption	m3/h	2
Measurement	Gross weight	kg	6800
	Dimensions (L x W x H)	mm	6000 x7000 x 4000

Main Features 1) Equipped with CNC system, which makes the man-manchine interface easy and flexible.
2) Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy.
3) Diverse, complex, 2-dimensional surfaces can be processed
4) Cutting speed is adjustable according to different requirements.
5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.
