Mechanical 290 Roller press charcoal briquetting machine price

Product Description

Product Description

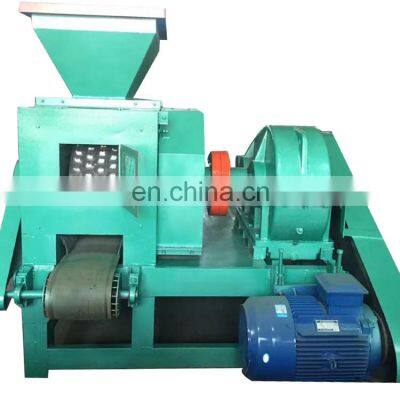

Mechanical 290 Roller press charcoal briquetting machine price
Product Description
Introduction of Roller press charcoal briquetting machine:
Roller press charcoal briquetting machine adopts two pressure roller ,it uses preloading spiral and forced pressure molding material into the middle of the roll, due to constant speed reverse rotation compression molding material, the unit pressure from small to large until the roller center "0-0", forming unit reach maximum pressure,then rollers go on rolling, as the roller forming pressure lowering, formed ball will separate from roller.
We have three kinds of Roller press charcoal briquetting machine :
common Roller press charcoal briquetting machine , powerful Roller press charcoal briquetting machine , and hydraulic(high pressure)Roller press charcoal briquetting machine
1.common Roller press charcoal briquetting machine: mainly uesd for coal and charcoal powder.
We have 290, 360, 430, 520, 670, 800, 1000 models.
2.powerful Roller press charcoal briquetting machine:for iron, aluminum powder and other minerals
We have 450, 520, 670, 800, 1000 models
3.high pressure(hydraulic)Roller press charcoal briquetting machine: also called dry powder ball press machine,which is used for Mineral powder, metal powder, coal powder, coke powder and other materials
We have 380, 520, 650, 750, 850, 1000 models
Structure of Roller press charcoal briquetting machine:
1, the feeding part, is used to feed material so that the material can feed to roller evenly ,it is drived by Spiral comprises electromagnetic motor.
2. The transmission part, main transmission system is: Motor - triangle belt - reducer - Open Gear - roll.
3. Forming part, mainly refers to the part of the host machine, its core part is roller.
Raw material requirements of Roller press charcoal briquetting machine:
coal powder, charcoal powder, metallic powder (FeSi powder), iron scale, iron sludge, precipitator dust, iron concentrate, raw material powder, manganese ore fines, slime peat, fireproof material, desulfurized gypsum
>>1.Materials size should be less than 3mm.If the size is larger than 3mm,crush them first;
>>2.Moisture requirement a. for powerful type, 10%-15%; b. for hydraulic type, <6%
data of Roller press charcoal briquetting machine:
Different rollers of Roller press charcoal briquetting machine:
The material of roller is: 65Mn or 9Cr2Mo.
a. common Agro waste briquette machine:the roller material is 65Mn.
b. hydraulic Agro waste briquette machine: the roller material is 9Cr2Mo. Both is wear resisting material.
It can service 10-12months(depends on your used raw materials)
65Mn roller of Roller press charcoal briquetting machine:
9Cr2Mo roller of Roller press charcoal briquetting machine:
Production line
Prodcution line of Roller press charcoal briquetting machine:
Final products of Roller press charcoal briquetting machine:
Packaging & Shipping
Package and delievery of Roller press charcoal briquetting machine:
Normally, we package Roller press charcoal briquetting machine by plastic film at the first step to avoid rust, then using fulmigation free wooden case to package.
In this way, the machine will not rust or damage during shipping.
Our Services
Our service of Roller press charcoal briquetting machine:
Pre - sales service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After - sales service:
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
FAQ:
-- What materials can i use?
Charcoal powder / charcoal dust: raw material powder, silicomanganese alloy, etc.
Coal: Coal powder, middle coal, slime peat, coke powder, lignite etc.
Other material: fireproof material, desulfurization gypsum, dolomite etc.
--- Which shape does your machine produce?
The final shape can be customized by your request.But it is ball or pillow shape.
--- Do i need to mix binder to press?
Yes, you can mix binder or combustion improver. But the binder depends on your material.
The most common binder is starch. It will not influence briquette quality.
Company Information

Gongyi Dongxing Machinery is a professional manufacturer of various machines. Our main products includes charcoal making machinery, pellet making machinery, Oil processing machinery, biomass drying equipment, Food drying equipment, Coal briquette machinery, Wood Crusher, etc.
With 5 years exporting experience, we are now the leading supplier in middle China now, our products has been exported to more than 55 countries in the world.
Clients profits go first is our principle.
Welcome to visit us at any time. Our nearest airport is: Zhengzhou airport. If you decide to visit us, we can help you to get visa, and come to pick you up at airport.
Roller press charcoal briquetting machine
