Jewelry Label 2-Inch Mobile Thermal Price Tag Printer for Jewelry Display

Product Description

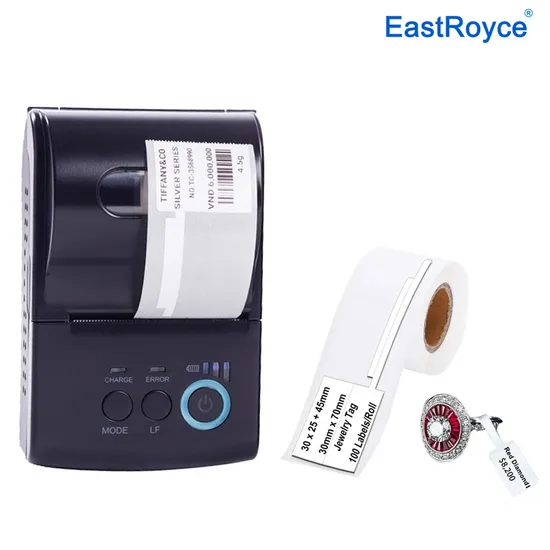

( ER-5801 ) Jewelry Price Tag Printer for jewelry display label printing
ER-5801 is a portable label printer designed for jewelry labels, which is mainly used for jewelry price labels, Logo labels... Print. It is compatible with Android /iOS/Windows, can be connected via Bluetooth or USB, has a rechargeable lithium battery, is small and easy to carry, making it ideal for jewelers.
Feature:
1. Automatic label calibration, accurate positioning.
2. Android / iOS / Windows Supported.
3. Label roll diameter up to Φ50mm.
4. No need ink or ribbon, low cost.
5. Dual Label and Receipt mode, fast mode switching.
6. Supports bar-code printing for jewelry tags, cable labels, sunglasses tags...
7. Compatibility is very strong, can print most of the common jewelry label paper on the market.
8. Excellent 2 inch mini label maker with Bluetooth interface. Specification

Printing Features	Label Mode	Receipt Mode
Resolution	203dpi
Dot Density	8dots/mm
Printing Method	Direct Thermal, No need ribbon and ink
Max.Print Speed	90mm(3.54")/s Max.
Max.Print Width	48 mm(1.9")/line
Character Set	Chinese: GB2312 (Optional: Big5(TaiWan), GB18030(HongKong), Shift-JIS(Japanese), Code page 949(Korean).Extended character sets: OEM850(Multilingual),OEM860(Portuguese),OEM863(Canadian-French),OEM 865(Nordic),West Europe,Greek,Hebrew,East Europe,Iran,Windows Code Page 1252,OEM866(Cyrillic#2),OEM 852(Latin2),OEM858,IranII,Latvian,Arabic,Windows Code Page 1251,OEM864
Print Font	ASCII Font A12×24, 32 characters/lineChinese: 24×24, 16 characters/lineFONT1~FONT8	ASCII Font A:12×24, 32 characters/lineASCII Font B:9×17, 42 characters/lineChinese: 24×24, 16 characters/line
Code	1D Barcode: EAN13, EAN8, UPC-A, UPC-E, Code 93, ITF Codabar, Code 39, Code 1282D Code: QRCODE/PDF417
Emulation	TSPL/CPCL	ESC/POS+ additional unique commands
Paper Specification:
Media Type	Thermal label paper	Thermal paper
Media Width	Label mode: 12~58mm	Receipt mode: 57.5±0.5mm
Media Thickness	Label mode:0.06~0.19mm	Receipt mode: 0.06~0.08mm
Roll Diameter	Φ<=50mm
Paper Off Method	Manual tear
Reliability(MCBF):
Print Head Life	Label mode: 30km (printing rate 25%)	Receipt mode: 50km (printing rate 25%)
Buffer:
Data Buffer	Label mode: 8M bytes	Receipt mode: 32K bytes
NV Flash		Receipt mode: 64K bytes
Interface	Standard: USB+Bluetooth+RS232 Serial (Optional USB+WiFi+RS232 Serial)
Physical Features:
Dimension	118 mm (L) x 75 mm (W) x 58 mm (H)
Raw Weight	220g ( Including Battery )
Software:
Driver	Windows/Linux/Mac
SDK	Windows/Android/iOS
Power Supply:
Battery	7.4V/1500mAh rechargeable lithium-ion battery
Input	AC 100-240V, 50-60Hz
Output	DC 5V/1A (USB Interface)
Options&Standard:
Accessories (Standard)	Manual guide, USB cable, Paper roll holder, Power adapter & Power cable, Paper roll	Manual guide, USB cable, Power adapter & Power cable, Paper roll
Factory (Optional)	Pouch, Serial cable
Environmental Conditions:
Operation	5 ~ 40°C (41~104°F), Humidity: 25 ~ 85% non-condensing
Storage Environment	-40 ~ 60°C (-40~140°F), Humidity:10 ~ 90% non-condensing

Applications
Jewelry label/Cable label/Price tag/Food label/Clothing label...
EastRoyce is a professional label printer manufacturer/factory, and we also supply various materials of jewelry label paper and pre-printing services for customers, if you are interested in please talk to us directly.
Packaging & Shipping
Quick delivery: Sample within 1~2days; Wholesales 3~7days; OEM 7~10days.
Company Profile
EastRoyce has a high tech R&D team, most of engineers have more than 10 years developing experiences which cover hardware design, Windows application, Linux application, Android application, iOS application. And EastRoyce is already one of Apple authorized MFi program members.
We has independent professional production line for each kind of product to assure our production capability and quality control, our production lines can produce 120,000pcs barcode scanners per month, 150,000pcs thermal printers , 8,000pcs pos systems per month, and 50,000pcs mini printer per month.
EastRoyce has already developed as a powerful one-stop supplier for POS peripherals. We always believes that best product comes with best designing first,then best materials purchasing control,and finally the best manufacturing process control. With our professional passionate high-tech team, we are capable of providing OEM services for customers all over the world.
FAQ
1. Are you a Trader or Manufacturer ?
We are Manufacturer and Developer of Thermal printer. We have innovative R&D team and professonal manufacturing team.
2. MOQ
No MOQ limit for the standard products, but the unit price is different, bigger quantity better price. If you need customization, you can discuss it with us directly.
3. Can I have Samples for Testing ?
After customers confirmed the specification, we are very glad to provide samples for testing. All samples should be paid before shippment. When you order in bulk, we can refund the cost of the sample or send you more products.
5. Payment
Paypal, western union, T/T in advance, Alipay..., for more payment methods please contact us directly.
6. Warranty
One year warranty. During warranty period, if there is damage/failure caused by non-human factor, EastRoyce will be responsible for repairing for free. If warranty period is expired, EastRoyce will continue to provide services with reasonable price to the customer. For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can retumed failure parts for rework andtanalysis.
7. Shipment
We accept all kinds of shipping ways including: express, air sea, truck, or pick up by customers personally.
