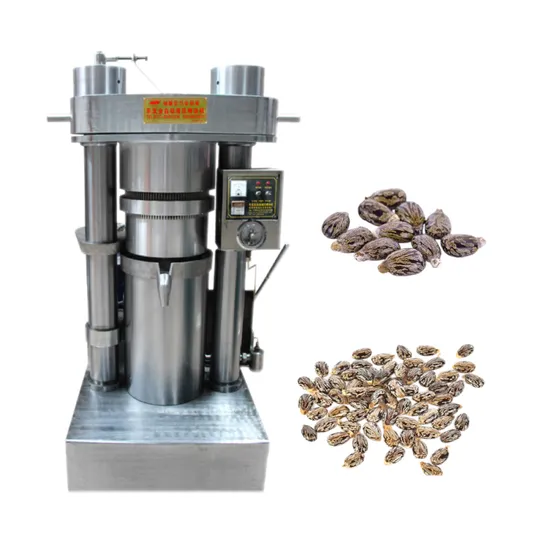

Lewin Cold Castor Perilla Seed Coconut Oil Extractor Cocoa Butter Macadamia Oil Presser Oil Expeller Machine Oil Orocessing Machine

Product Description

Product Description
lewin cold castor perilla seed coconut oil extractor cocoa butter Macadamia oil presser oil expeller machine oil orocessing machine
This hydraulic oil presser use physical hydraulic method to press oil raw material, like rapeseed, sesame, coconut, walnut, chestnut, camellia and etc, to help you get edible oil.
Working principle:
The hydraulic box provides power, and then pushes the solid piston in the press chamber to extrude the material, which is blocked by the top roof, so the oil is extruded, when the pressure reaches 60Mpa, the pressure will automatically fall down, the piston will also fall, when the pressure drops to about 50Mpa, the piston will go up again, press the material and extrude the oil repeatedly.

Other models for your choose
Model	6YY-185	6YY-230A	6YY-230B	6YY-250	6YY-270	6YY-300	6YY-335
Capacity(kg/batch)	4 kg	8.5	9.5	11	13.5	16	20
Working time per batch	8-15 minutes	8-15 minutes	8-15 minutes	8-15 minutes	8-15 minutes	8-15 minutes	8-15 minutes
Capacity(kg/h)	12-20kg	25-40kg	27-45kg	22-50kg	26-60kg	30-65 kg	40-80 kg
Voltage	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Power	1.1kw/2.2kw	1.1kw/2.2kw	1.1kw/2.2kw	1.1kw/2.2kw	4kw/2.2kw	4kw/2.2kw	4kw/2.2kw
Size	0.6*0.88*1.15m	0.67*0.95*1.46m	0.67*0.95*1.56m	0.71*0.95*1.56m	0.75*1.01*1.64m	1*1.1*1.66m	1.1*1.24*1.73m
Weight	590kg	924kg	950kg	1070kg	1230kg	1600kg	1750kg

Operation step of hydraulic oil presser:
The oil cake also can be used again:
1. Make cakes, snacks, etc. 2. As fertilizer to grow vegetables or fertilize flowers. 3. As a feed, oil cake is rich in protein, which is the main ingredient of the feed.
Our Advantages
The structure of lewin hydraulic oil machine:
Brief introduction of Advantage:
1. Professional research and development, complete model, advanced manufacturing technology, beautiful appearance.
2. It has high pressure,max working pressure is 60Mpa, higher than other machine, provide higher oil yield.
3. Double pump( high pressure pump and low pressure pump) hydraulic system, the key part of machine. 2 pump hydraulic system can improve work efficiency and improve oil yield.
4. The hydraulic system has a safety valve to ensure the safe operation of the machine.
5. Oil line is thinner, only 0.36mm, it can filter oil residual directly, final oil can reach to edible oil.
6. Lewin hydraulic oil machine can work continuously for 24 hours. It can squeeze 4-23 kilogram per batch, the time of pressing is 8 to 15 minutes.
7. It can fully cold press, if you have special request of temperature, keep "heating" switch off, temperature will be same as room temperature. More environmentally and economic,easy operation.
Detail parts of lewin hydraulic oil press machine:
1. Large screw nut
Our large screw nuts adopt high-quality steel to bear the large pressure and make sure the long using life.And our screw nuts don't need to be adjusted before pressing,so it can save your time and effort.
2. Pressure kettle
Precision oil line, only 0.36mm, filtering residue, finally the oil can reach the cooking grade directly, the oil is transparent and edible.
High quality steel and special heat treatment make it strong and safe enough.
3. Electrical control panel
Internal temperature control parts to solve the problem of low oil performance in winter (normal performance will be lower in winter oil machine).
Only two buttons control all working pressure and temperature, very easy to operate. The buttons were tested very strictly before shipping, make sure they are safe and last for a long time.
4. Hydraulic system
The hydraulic system is the key part of the machine. It adopts double-pump technology, achieve the high-low pressure exchange, thus improving the working efficiency and oil output rate.
5. Solid piston
Using high quality steel, pressing deeper and cleaner. Repeatedly squeeze the material to increase oil yield.
Lewin hydraulic oil presser use high quality material and advanced technology, more safety and low maintenance cost.
Service
1. Factory direct price
2. Nice package, quick delivery and quality guarantee.
3. Pre-sale service
* Offer the professional quotation, solution and design drawing.
* Accept the customized model machine
* Accept to visit factory
* Free testing
* Free consult and technical support
After-sale service
* Online technology support.
* Free video support.
* Free spare parts and maintenance service during the warranty period. (Except the breakdown and destroy caused by person and force majeure)
* Field maintenance and repair service (paid)
*We can install the oil presser for you for free.
Packaging & Shipping
We use double films and standard wooden boxes to pack the machine, which can avoid rusting and reduce the tear on the machine, thus protecting the machine. If the customer has their own needs, we can customize the packaging according to the customer's requirements.
