Laser Cut Wood Machine with 150W, 300W, 450W, 600W for Veneer Inlay, Wood Die Board, Wood Puzzle, Signage, Ornaments, Frame, Plaque, Portraits, Artwork, Letters

Product Description

Laser Cut Wood Machine - MimoWork Laser
Laser Solution

Production Description
Our laser cut wood machine are fully customizable to suit your specific needs and budget. The MimoWork F-1060 and F-1390 models are designed for engraving and cutting wood, making them perfect for home use, hobbyists, and beginners. Despite their compact size, these machines offer impressive cutting capabilities, providing an excellent balance between affordability and performance. These machines are ideal for cutting and engraving common wood types such as balsa, plywood, and MDF.

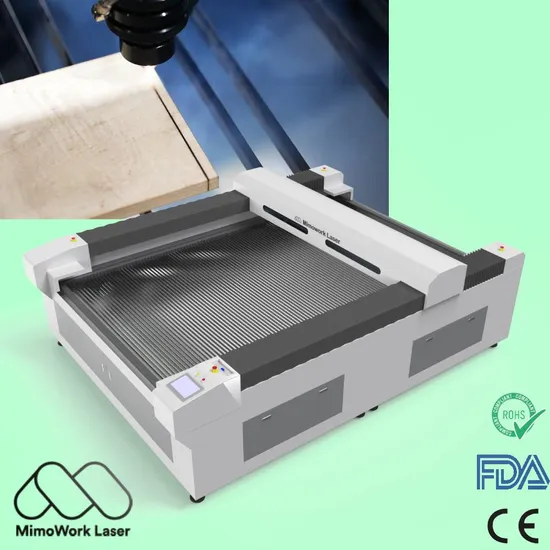

For larger wood pieces used in sign-making or furniture production, the MimoWork F-1325 is the optimal choice. Featuring a spacious working area of 1300mm x 2500mm, this model offers a convenient four-way access design. With high-speed capabilities, the F-1325 can achieve cutting speeds of up to 36,000mm per minute and engraving speeds of 60,000mm per minute, ensuring fast and efficient production.

Equipped with a ball screw and servo motor transmission system, the F-1325 ensures stable and precise movement at high speeds, enabling smooth cutting of large-format wood while maintaining both quality and efficiency.
Technical Specification
How Thick of Wood Can Laser Cut? - Choose a Laser Machine
The maximum thickness of wood that can be cut using laser technology is contingent upon a combination of factors, primarily the laser power output and the specific characteristics of the wood being processed.
The Laser Power determines the max thickness of wood can be laser cut.
In general,
Higher Power → Stronger Cutting Ability → Thicker Wood can be laser cut
For Example,
Pay Attention to the Cutting Speed
Besides, in situations where different power levels can cut through the same thickness of wood, the cutting speed becomes a crucial factor in selecting the appropriate power based on the cutting efficiency you aim to achieve.

Who Should Buy the Laser Cut Wood Machine?

If You Have These Requirements, The Wood Laser Cutter & Engraver is Your Best Choice.
Both wood laser cutting machines and CNC routers can be invaluable assets for woodcraft businesses. These two tools complement each other rather than compete. If your budget allows, consider investing in both to enhance your production capabilities, though I understand that may not be feasible for most.
1. If your primary task involves intricate carving and cutting wood up to 30mm in thickness,
a CO2 laser cutting machine is the optimal choice.
2. However, if you're part of the furniture industry and require cutting thicker wood for load-bearing purposes,
CNC routers are the way to go.
3. Given the wide range of laser functions available, if you're an enthusiast of wooden craft gifts or just starting your new business, we recommend exploring desktop laser engraving machines that can easily fit on any studio table. This initial investment typically starts at around $3000.

Production Information

Product Features: What Benefits can you get?

High Speed Railway
High-speed rail guides are engineered to support rapid movement in machinery, emphasizing reduced friction and enhanced stability. Designed for applications such as CO2 laser cutting machines and CNC equipment, these guides ensure precise positioning even at high speeds.

Control Panel
The touch-screen panel makes it easier to adjust the parameters. You can directly monitor amperage (mA) and water temperature right from the display screen.

USA Focus Lens
CO2 USA laser focus lenses are precision optical components designed specifically for CO2 laser systems. These lenses play a crucial role in directing and focusing the laser beam onto the material being processed, ensuring optimal cutting, engraving, or marking performance. Made from high-quality materials such as zinc selenide or glass, CO2 focus lenses are engineered to withstand the intense heat generated during laser operations while maintaining clarity and durability.

Servo Motor
Servo motors ensure higher speed and higher precision of laser cutting and engraving. A servomotor is a closed-loop servomechanism that uses position feedback to control its motion and final position.

Exhaust Fan
Exhaust fans are crucial components in fabric laser cutting machines, designed to maintain a safe and efficient working environment. Their primary function is to remove smoke, fumes, and particulate matter generated during the laser cutting process.

Air Blower
Air assistance is significant for you to ensure smooth production. We put the air assist next to the laser head, it can clear off the fumes and particles during laser cutting.
For another, the air assist can decrease the temperature of the processing area (that is called the heat-affected area), leading to a clean and flat cutting edge.

Laser Software(optional)
Choosing the suitable laser software can upgrade your production. Our MimoNEST software is a good choice for cutting patterns of different shapes and sizes, auto nesting the patterns to max the material use and cutting efficiency, more information about laser software, please talk with our laser expert.

Product Details
For F-1390
Two-way Penetration Design
Laser engraving on the large format wood can be realized easily thanks to the two-way penetration design, which allows wood board placed through the whole width machine, even beyond the table area. Your production, whether cutting and engraving, will be flexible and efficient.

Signal Light
Signal light can indicate the working situation and functions exerting of laser machine, helps you to do the right judgment and operation.
Emergency Button
Happen to some sudden and unexpected condition, the emergency button will be your safety guarantee by stopping the machine at once.
Safe Circuit
Smooth operation makes a requirement for the function-well circuit, whose safety is the premise of safety production.
Auto Focus(optional)
It is mainly used for metal cutting. You may need to set a certain focus distance in the software when the cutting material is not flat or with different thickness. Then the laser head will automatically go up and down, keeping the same height & focus distance to match with what you set inside the software to achieve a consistently high cutting quality.
For 1325
Stable & Excellent Cutting Quality
laser cutting machine alignment, consistent optical path from MimoWork Laser cutting machine 130L.
Constant Optical Path Design
With the optimal output optical path length, the consistent laser beam at any point in the range of the cutting table can result in an even cut through the entire material, regardless of thickness. Thanks to that, you can get a better cutting effect for acrylic or wood than the half-flying laser path.
High Efficiency and Precision
Efficient Transmission System
X-axis precision screw module, Y-axis unilateral ball screw provide excellent stability and precision for the high-speed movement of the gantry. Combined with servo motor, the transmission system creates fairly high production efficiency.
Durable and Long Service Life
Stable Mechanical Structure
The machine body is welded with a 100mm square tube and undergoes vibration aging and natural aging treatment. Gantry and cutting head use integrated aluminum. The overall configuration ensures a stable working state.
High Speed Processing
High Speed of Cutting and Engraving
Our 1300*2500mm laser cutter can achieve 1-60,000mm /min engraving speed and 1-36,000mm/min cutting speed.
At the same time, position accuracy is also guaranteed within 0.05mm, so that it can cut and engrave 1x1mm numbers or letters, totally no problem.
Case Sturdy

FAQ

1. Can a Laser Cutter Cut Wood?
Yes!
A laser cutter can cut wood with precision and efficiency. It's capable of cutting through various types of wood, including plywood, MDF, hardwood, and softwood, making clean, intricate cuts. The thickness of wood it can cut depends on the laser's power, but most wood laser cutters can handle materials up to several millimeters thick.
2. How Thick of Wood Can a Laser Cutter Cut?
Within 25mm Recommended
The cutting thickness depends on the laser power and machine configuration. For CO2 lasers, the most efficient option for cutting wood, power ranges typically from 100W to 600W. These lasers can cut through wood up to 30mm thick. Wood laser cutters are versatile, capable of handling delicate ornaments as well as thicker items like signage and die boards. However, higher power doesn't always mean better results. To achieve the best balance between cutting quality and efficiency, it's crucial to find the right power and speed settings. We generally recommend cutting wood no thicker than 25mm (approximately 1 inch) for optimal performance.
3. How to Laser Engrave Wood?
To laser engrave wood, follow these general steps:
step 1. Prepare Your Design: Create or import your design using graphic design software like Adobe Illustrator or CorelDRAW. Make sure your design is in vector format for precise engraving.
step 2. Set Up Laser Parameters: Configure your laser cutter settings. Adjust power, speed, and focus settings based on the type of wood and desired engraving depth. Test on a small scrap piece if needed.
step 3. Position the Wood: Place your wood piece onto the laser bed and secure it to prevent movement during engraving.
step 4. Focus the Laser: Adjust the laser's focal height to match the wood's surface. Many laser systems have an autofocus feature or a manual method. We have a YouTube video to give you a detailed laser guide.
…
4. What is the difference between laser engraving and wood burning?
Laser engraving and wood burning both involve marking wood surfaces, but they differ in technique and precision.
Laser engraving uses a focused laser beam to remove the top layer of wood, creating highly detailed and accurate designs. The process is automated and controlled by software, allowing for complex patterns and consistent results.
Wood burning, or pyrography, is a manual process where heat is applied using a handheld tool to burn designs into the wood. It's more artistic but less precise, relying on the skill of the artist.
In short, laser engraving is faster, more accurate, and ideal for intricate designs, while wood burning is a traditional, handcrafted technique.
5. What software do I need for laser engraving?
When it comes to photo engraving, and wood engraving, LightBurn is your top choice for your CO2 laser engraver. Why? Its popularity is well-earned due to its comprehensive and user-friendly features. LightBurn excels in providing precise control over laser settings, allowing users to achieve intricate details and gradients when engraving wood photos. With its intuitive interface, it caters to both beginners and experienced users, making the engraving process straightforward and efficient. LightBurn's compatibility with a wide range of CO2 laser machines ensures versatility and ease of integration. It also offers extensive support and a vibrant user community, adding to its appeal. Whether you're a hobbyist or professional, LightBurn's capabilities and user-focused design make it a standout choice for CO2 laser engraving, especially for those captivating wood photo projects.
6. What Else Material Can Laser Cut?
Besides wood, CO2 lasers are versatile tools capable of cutting acrylic, fabric, leather, plastic, paper and cardboard, foam, felt, composites, rubber, and other non-metals. They offer precise, clean cuts and are widely used in various industries, including gifts, crafts, signage, apparel, medical items, industrial projects, and more.
7. What is the HS (Harmonized System) Code for Laser Machines?
8456.11.0090
The HS code of each country will be slightly different. You can visit your government tariff website of the International Trade Commission. Regularly, laser CNC machines will be listed in Chapter 84 (machinery and mechanical appliances) Section 56 of HTS BOOK.
8. What do I Need to Prepare Before the Arrival of the New Machine?
Investing laser system for the first time can be tricky, our team will send you the machine layout and installation handbook (e.g. Power Connection, and Ventilation Instructions) in advance. You are also welcome to clarify your questions directly with our technical specialists.
Packaging & Shipping
Period of Delivery: 15-20 working days after receiving the down payment
Warranty: 12 months (laser tube has a 6-month warranty; reflection mirror & focus lens have no warranty)
