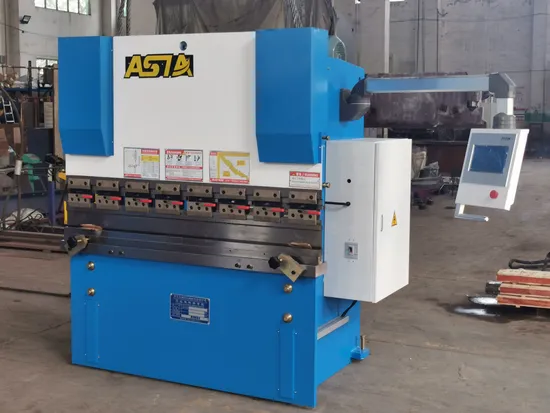

CNC Hydraulic Mild Steel Sheet Plate Metal Swing Beam Electric Press Brake

Product Description

Main functions and features · Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.
· Within one stroke, bending pressure can be controlled at a random point, repeatability precision±0.01, parallelism 0.02.
· Lower worktable has a compensation device to anti deflection & upper tool has a wedge compensation device.
· Holand Delem CNC control system, linear scale, Rexroth hydraulics, servo motors, and other accessories of famous brands are installed for perfect machine performance.
· Ram stroke(Y1, Y2), back gauge (X, R, Z) are controlled by a CNC controller while ball screw and linear guide rail installed for high repeatability precision.
· Multi-axis controlling allows this type of press brake to be designed and manufactured into a soft fabrication center.
Related configuration with details
· Rear view of CNC press brake
· Brand new integrated back gauge system with the extra thick beam for high parallelism, rigidity, and durability
· sealed design of X-axis transmission for protecting inside ball screw and linear rail and achieving high precision and reducing maintenance
· Servo motor and steel wire belt are used for high controlling accuracy, positioning precision, and lower noise.

· 3 hydraulic cylinders are used for the crowning system to reduce angle deflection on the middle of the plate
· electrics are adopted for reliability and longer lifespan
· Highly-precise CNC tooling and quick clamping are used for extra precision, durability, and fast tool changing.
· Imported brand grating scale for no delay feedback of Y-axis data and sensitive transducing
· Imported brand hydraulics, stable, resistant to high temperature and high pressure, persistent on fine working accuracy
· Double sliding front support arm, horizontally movable for the easy shift between the single person or two persons working standing position.
· Vertically adjustable finger stopper sliding on the beam of the double liner guide rail. Vertical manual adjustment for applying on different tools
