Centerless Grinding Machine with Auto Loading Manipulator Model S150
| US$1.00-60,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
S150
Type
Centerless Grinding Machine
Processing Object
Cylindrical Parts
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Accuracy
0.001mm
Grinding Wheel
Psa500*150/200*203mm
Max Diameter
45mm
Control System
PLC, CNC
Transport Package
Wooden Case
Specification
2600*1900*1500mm
Trademark
PHISONG
Origin
China
HS Code
8460291100
Production Capacity
500
Packaging & Delivery
Package Size
270.00cm * 200.00cm * 160.00cm
Package Gross Weight
3000.000kg
Product Description

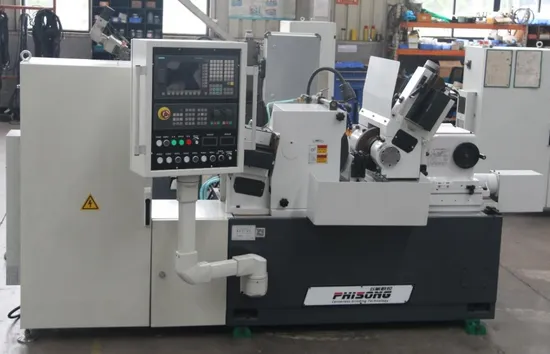

HCGM-S150 high precision PLC/CNC centerless grinding machine (single axis)
1. Machine application:
Thrufeed grinding(longitudinal grinding)
Infeed grinding(plunge grinding)
2. Main features:
2.1. machine body
Iron casting with high rigidity, natural aging.
2.2. Grinding and regulating wheel
Grinding wheel fixed, regulating wheel movable.
Grinding wheel in cantilever type, and its spindle adopted multi-plates long bearing bushed static-hydrodynamical oil film bearing.
Double row cylindrical roller bearings for regulating wheel spindle with high rotation precision.
Temperature cooling for grinding wheel spindle lubrication.
Regulating wheel converter, step-less speed adjusting.
2.3.Feeding system
Servo motor drives directly ball screw for main feeding. Double V roller guide.
2.4. Dressing system.
Double V roller guide for grinding wheel dresser reciprocating guide. Gear motor drives ball screw.
Double V roller guide for regulating wheel dresser reciprocating guide Gear motor drives ball screw, step-less speed control.
2.5. Cooling system
Water pump with magnetic separator.
2.6. Electric control system
10.4' screen, auto in-feed grinding, adjustable of feeding amount, speed,time. PLC and CNC optional.
Modulation design, beautiful appearance..
2.Main configuration
| Parts name | Spec.& model | QTY | Unit | Brand |
| Control system PLC | Mitsubishi | 1 | Set | Mitsubishi |
| Servo motor | Mitsubishi | 1 | Set | Mitsubishi |
| screen | 10' | 1 | PC | Mitsubishi |
| Regulating wheel inverter | 3.7KW | 1 | PC | Mitsubishi |
| Grinding wheel motor | Y2 7.5KW | 1 | PC | WANNAN |
| Regulating wheel motor | Y2 1.5KW | 1 | PC | WANNAN |
| Gear motor | 40W | 1 | PC | PANASONNIC |
| Low-voltage apparatus | 1 | SET | SCHNEIDER | |
| Ball screw | 1 | PC | NANJING | |
| double V Guide for main feeding | 2 | PC | WUXI |
3.Technical Data
| 3 Axes | ||
| In-feed Grinding | Dia. | 2-45mm |
| Length | 150mm | |
| Through grinding | Dia. | 1-45mm |
| GW SPEC. (O.D.*width*I.D.) | 400*150*203mm | |
| RW SPEC.(O.D.*width*I.D.) | 250*150*127mm | |
| GW Speed | 1338r/min | |
| RW Speed (stepless) | 10-200r/min | |
| Swiveling Angle of RW | Vertical | -2°~ +5° |
| Horizontal | -1°~ +3° | |
| GW min feeding amount | 0.001mm | |
| GW dresser min feeding amount | 0.001mm | |
| Height from center line of GW & RW to work rest | 190mm | |
| Cooling water flow | 25L/min | |
| GW Motor | 13kw | |
| RW Motor | 1.5kw | |
| Power Supply | 3N 50HZ 380V | |
| Dimension(L*W*H) | 1920*1681*1479mm | |
| Machine Weight | About 3 tons | |
| Accuracy (standard bars) | Roundness | 0.001mm |
| Cylindricity | 0.0018mm | |
| Roughness | Ra.0.16μm | |
