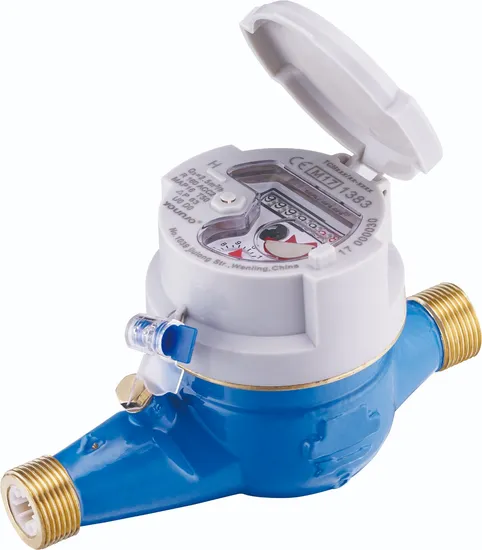

R160 / Multi Jet Brass Body Dry Type Water Meter

R160 / Multi Jet Brass Body Dry Type Water Meter

Negotiable 5,000 Pieces (MOQ)

Basic Info.

Model NO.
LXSG-15E5/RLN1~40E/RLN1
Install
Horizontal
Medium Temperature
Cold Water
Level Measurement
B
Counter Instructions
Digital
Nominal Diameter
15-50mm
Application
Civil, Industrial, Irrigation
Principle
Speed of Water Meter
Medium Pressure
General Water Meter
Work Environment
Dry Water Meter
Stucture
Mechanical Type
Type
Multi Jet
Material
Brass
Size
1/2-2 Inches
Transport Package
Carton/ Pallets
Trademark
YOUNIO or OEM
Origin
Zhejiang
HS Code
90282010
Production Capacity
12000PCS/Month

Product Description


Product Description
Multi jet ,dry dial, direct reading.
Producted in the versions for cold water 30ºC.
Long durability and elevaated precisions guaranteed.
Characteristics:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30ºC(T30), but the type meter can be used safely in water temperature up to 50ºC(T50);
The ROTARYindicator register for the most comfortable reading position of 5 Rollers (Dn40 with 6 Rollers) and 4 Pointers;
The Impeller is the only moving parts in contact with water permitting the most reliable;
The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
The conception of the Magnetic Protection to against the external influences;
Maximum permissible error:
From the minimum flow-rate (q1)inclusive to the lower zone of the transitionalflow-rate (q2) exclusive: ± 5%.
From the transitional flow-rate (q2) inclusive to the higher zone of the maximum flow-rate (q4) exclusive: ± 2%
(hot water meter± 3%. )
Technical Features
Model Number LXSG-15E5 LXSG-20E5 LXSG-25E5 LXSG-32E5 LXSG-40E5
Nominal diameter (DN)[mm]: 15 20 25 32 40
Ratio Q3/Q1: R80 R100 160 R80 R100 160 R80 R100 160 R80 R100 160 R80 R100 160
Overload flow rate (Q4) [m³/h] 3.125 3.125 3.125 5 5 5 7.875 7.875 7.875 12.5 12.5 12.5 20 20 20
Permanent flow rate (Q3) [m³/h] 2.5 2.5 2.5 4 4 4 6.3 6.3 6.3 10 10 10 16 16 16
Transitional flow rate (Q2) [m³/h] 0.05 0.04 0.025 0.08 0.064 0.04 0.126 0.1008 0.063 0.2 0.13 0.1 0.32 0.256 0.16
Minimum flow rate (Q1) [m³/h] 0.03125 0.025 0.0156 0.05 0.04 0.025 0.07875 0.063 0.0393 0.125 0.1 0.0625 0.2 0.16 0.1
Ratio Q2/Q1: 1.6
Ratio Q4/Q3: 1.25
Accuracy class: 2
Maximum permissible error for the lower flow rate zone (MPEι): ±5%
Maximum permissible error for the upper flow rate zone (MPEμ): ±2% water temperature≤30ºC ±3% water temperature >30ºC
Temperature class: T30 and T50
Water pressure classes: MAP 16
Pressure-loss classes: △P63
Indicating range[m3]: 99 999
Resolution of the indicating device[m3]: 0.00005
Flow profile sensitivity classes: U0 D0
Orientation limitation: H
Length L[mm]: 165/190 190 260 260 300
Connection type-Screw thread size: G3/4B G1B G 1 1/4B G 1 1/2B G2B
