Efficient Full-Servo Adult Pull up Diaper Machine with Ce (CNK300-SV)

Product Description

YNK300-SV Full-servo High-speed Adult pull up diaper making machine

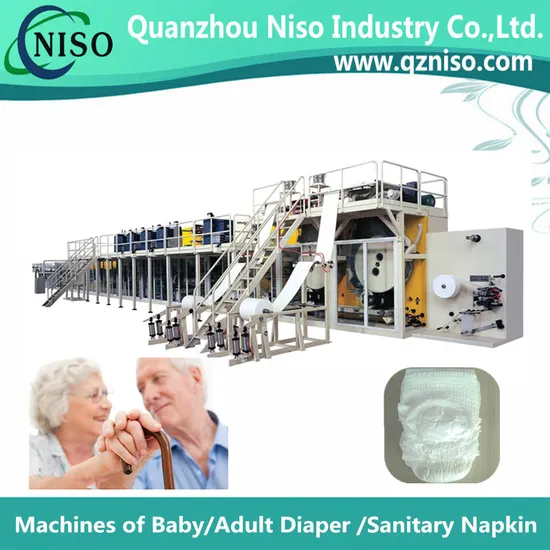

Machine Display
Finished Products

Main Technical Parameter

Designed production speed	300 pieces/min
Stable production speed	250 pieces/min(or as per customers designed)
Machine power	three-phase five-wire(380V, 50HZ)
Machine capacity	about 350 KW(exclude hot melt applicators and air compressor
Machine size	20.0m*7.0m*3.5m(L*W*H)(including stacker, set temporarily
Machine weight	about 60 Tons(whole production line)
Air pressure	0.6-0.9Mpa

Quick Details
Condition: New adult pull up pants machine
Product Type: Pull up pants Machine
Processing Type: Pulp Molding Machine
Place of Origin: Fujian, China (Mainland)
Model Number: CNK300-SV
Voltage: 380v, 50HZ, three-phase five-wire
Power(W): about 350Kw
Dimension(L*W*H): 22*7*3.5m(L*W*H)
Weight: 60 T
Certification: ISO, certificate of utility model patent
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Machine type: pull up diaper making machine
Diaper pad size: S, M, L, XL
Control system: Full-servo control
Packaging system: Equipped with the stacker at the request of client
Efficient rate: ≥ 85%
Reject rate: ≤2%
Air pressure: 0.6-0.9Mpa
Main Function Features
1. Servo motors driving with PLC control and touch screen;
2. High-speed teeth-like crusher;
3. SAP auto adding with amount control;
4. Servo unwinding, auto-tension control and auto splicing for raw material;
5. Auto reject for wasted & rejected product, auto detect & alarm for material exhausted;
6. Phase adjusting during running without stop;
7. Diaper auto counting & stacking;
8. With the LED display screen, displaying urgent stop indication and current speed.
Raw materials needed for producing diaper products
1. Baby diapers: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband
2. . Adult diaper A-Grade: pulp + hydrophilic N.W + hydrophobic N. W + tissue paper + cloth-like laminated film+ SAP + hot melt adhesive + elastic adhesive + hook side tape + Loop frontal tape ADL + Elastic Ribbon + Elastic Waistband
Machine Production Workshop
Machine Assembly
Our Services
Excellent After-sales service
1. You can send technicians to our factory to learn operating the machine before delivering
machine for 1-2 month.
2.When the machine arrive at your workshop, we will send technician to your workshop to
install, test the machine and train your workers
.
3. If you need 1-3 Chinese technicians to work for you, we can help you to find them.
4. Life-long after-sales service for machines.
Why choose us?
1. We are Chinese Listed company since Nov.30th, 2012, 035007, we have ISO certificate, certificate of utility model patent, patent for invention for machine etc, you can trust we are your best supplier.
2.We can do full support for your complete project, from machine's manufacturing and
installment, supplying raw materials, designing your factory layout, workers training to
final production.
3.We have served customers from over 100 countries in the world till now.
4.We can offer you very good machines and service at good price. (we have our own parts processing workshop)
5.We are factory manufacturer, not trading company.
Packing & Delivery
Packing: Standard export package:pant anti-rust oil on machine, wrap machine with plastic film,
then put machine in wooden cases.
Delivery: 120 days after receiving the deposit
