R134A&R1234yf Air Conditional Refrigerant Recovery Machine with Flushing Function

Product Description

Product Description R134a&R1234yf Air conditional refrigerant recovery
machine with flushing function
Features:
Recovery efficiency over 95%
1.Recovery, vacuum, charge;
2.Service database;
3.Customer service report printing;
4.Pipe cleaning in inversion direction;
5.Fully automatically operation;
6.Big LCD display;
7.Operation & service prompt;
8.High/low pressure protection;
9.Bigger cylinder;

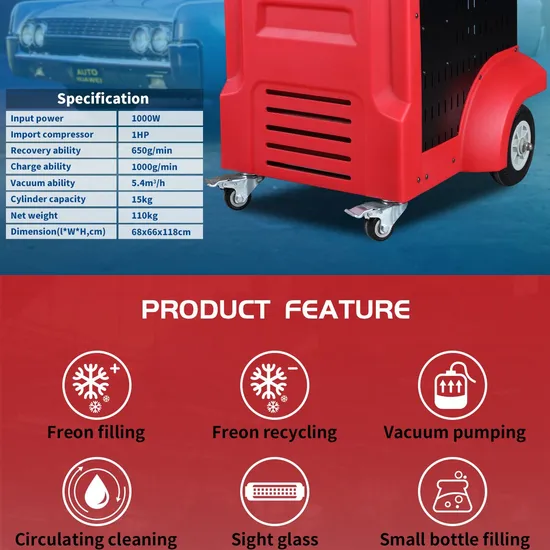

Specification:

Product name	a/c r134a recovery machine auto refrigerant machine
Model	HW-998
Function	Air conditioning system pipe cleaning
Flush cleaning	Negative pressure cleaning, positive pressure cleaning, positive and negative pressure mixed cleaning
Input power	1000W
Import compressor	1 HP
Recovery ability	650g/min
Charge ability	1000g/min
Vacuum ability	5.4m3 /h
Cylinder capacity	15kg
Net weight	110kg
Dimension	1180*670*620mm

comment
1) Read the instructions carefully before using the machine
2) Check the type of refrigerant before operation. Only R134a can be used
3) In order to prevent the occurrence of serious accidents caused by excessive high pressure, the recovery/refilling of R134a to the storage cylinder should not exceed 8KG
4) Do not place pipes near the rotating body, automatic cooling components (such as electric fans) and heating devices
5) Check the oil height of the vacuum pump before use
6) Do not recycle more than 10 times within 1 hour, otherwise it will cause damage to the air shrinking machine
7) Keep the operation away from children
8) Only professional and technical personnel
9) Do not disassemble if the manufacturer allows
10) Don't turn the machine upside down
11) If there is less than 1KG of refrigerant in the work tank, the filling procedure will not work Detailed Photos
