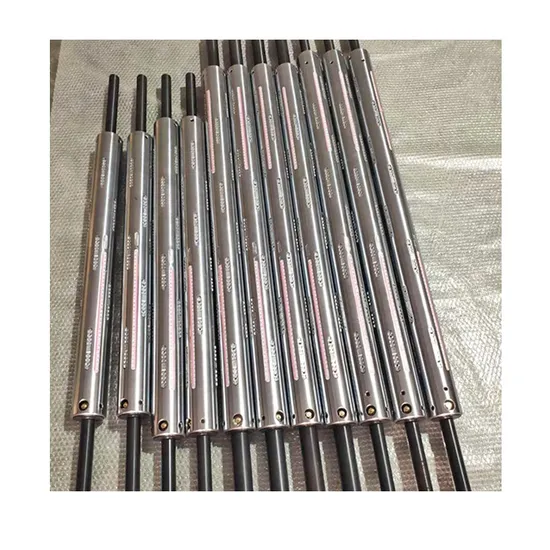

3 Inch Lug Type Pneumatic Shafts for Slitting Machines

Product Description

Description

Expanding Method:	Air Expanding Type
Expanding Element Material:	Aluminum/Rubber/Steel Lug
Outer Diameter:	74mm-74.5mm(Can be customized as per customers' demands or drawings)
Inner Diameter of Applicable Tube	76.2mm(Customers need to inform their CORE ID exactly)
Length:	Customized based on drawing
Shaft Body:	Steel/Aluminum alloy
Shaft End Material:	Steel
Colour:	Silver or Brown

Inflatable Shaft Use:
It is suitable for the retractable shaft of coating, slitting, printing, rewinding, laminating, paper making, bag making, plastic and other related machinery, which can effectively improve work efficiency.
Structural features:
The shaft body is made of high-quality steel pipe with chrome-plated surface; aluminum convex key, flexible expansion and contraction; equipped with high-quality rubber liner and quick filling and exhaust nozzle, good sealing effect and long service life; removable shaft head, easy maintenance.

Technique parameter

Model	Inner Diameter of Paper Tube	Shaft Diameter Before Expanding	Shaft Diameter After Expanding
1″ Shaft	Φ25.4mm	Φ24.5mm	Φ27.5mm-Φ28mm
1.5″ Shaft	Φ38mm	Φ37mm	Φ41mm
2″ Shaft	Φ50mm	Φ49mm	Φ53mm
3″ Shaft	Φ76.2mm	Φ74mm-Φ74.5mm	Φ82mm
4″ Shaft	Φ102mm	Φ100mm	Φ108mm
6″ Shaft	Φ152.4mm	Φ150mm	Φ158mm
8″ Shaft	Φ203.2mm	Φ200mm	Φ210mm
10″ Shaft	Φ254mm	Φ250mm	Φ260mm
12″ Shaft	Φ304.8mm	Φ300mm	Φ312mm

Note: According to customers' special size requirements, production design can be carried out to meet your needs.
Use of Air Shafts:
1. Wide application: The convex key type air shaft is an independently designed part, ranging from 1 inch to 12 inches. The length and size are determined by the actual needs of the customer. Where there is slit printing, rewinding, coating, and bag making, papermaking, etc. Inflatable shafts can be applied to work equipment or other related center winding machinery.
2. Economical and efficient: The design of the shaft is designed for actual work needs, and it can be applied to various types of coils, such as thickness and width.
3. Long use time and simple maintenance: Although the inflatable shaft is a part of the machine, each part in its own structure has a fixed specification and can be used interchangeably, making it easy to maintain. .
4. Single accessory: The inflatable shaft is a single part of the rewinding and unwinding machine. Each part in its structure has a fixed specification and size, which can be decomposed and combined to make maintenance convenient and durable.
5. Professionalism: There are professional engineers and technicians for market research on the design, installation and use of inflatable shafts.
6. Large bearing capacity: The inflatable shaft can be designed according to the actual model, using high-quality steel to increase the bearing capacity. For example, steel materials can be selected for those with a bearing weight of more than 1 ton.
7. Short operating time: It only takes 2 seconds to inflate and deflate the roll tube to separate and place the roll tube. It is simple and convenient to place the roll tube, safe and applicable. It can be applied to all the machinery and equipment used for winding and unwinding. Shafts. The length of the inflatable shaft can be up to six meters or more, and the length can be up to several hundred millimeters. The length is determined according to the needs of customers.
8. The keyed inflatable shaft expands to a single key strip, and the fulcrum spreads to each key strip to balance the force, which is suitable for mechanical rewinding of articles with heavier carrying capacity.
The purpose of the key strip type inflatable shaft: the product is used in the slitting, printing, rewinding, coating, laminating, bag making, paper making, electronic battery and other related machinery or other related center drive winding Used in conjunction with the material sending machinery.
Application
Air shaft prcocessing flow
About us
DongGuan HongJun Packaging Technology Co., Ltd. is committed to intelligent correction system, automatic tensioning system, sliding shaft, pneumatic shaft, pneumatic sleeve, magnetic powder clutch brake, electromagnetic pneumatic clutch brake, fast safety chuck, aluminum guide roller, mirror roller and The research and development, production, sales and after-sales service of other products provide various tension and correction control solutions for the field of coil equipment.
Advantages
Why do you choose us?
Your choice,We promise!
Eight reasons to choose us:

1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipments.
7. The company has more than one product testing units.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

Five Core strengths:

1. The first domestic independent R & D manufacturer and 13 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
Packaging
Order Details

Item Name	3 Inch Lug Type Air Expanding core Shaft
MOQ(Minimum Order Quantity)	1Pc
Lead time	10-18 days after receiving the deposit
Calculated Weight	14kg/Meter(Steel Body),9kg/Meter(Aluminum Body)
Package	Carton/Wooden Box
Price Term	EXW,FOB, CIF, etc
Payment term	TT,L/C,Western Union
Country of Origin	China
