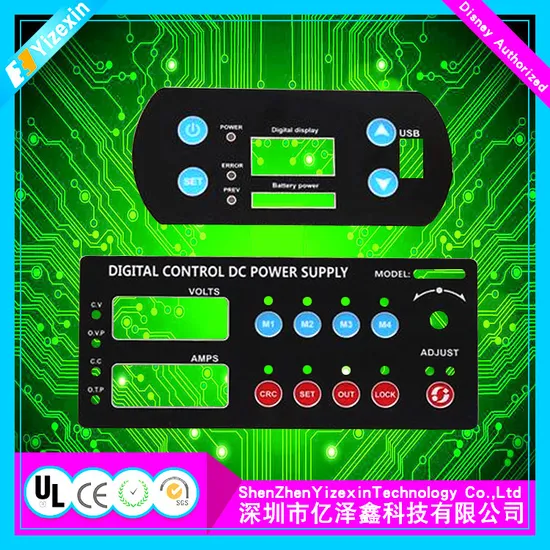

Custom Polydome Overly Embossed Pet/PC Membrane Panel

Product Description

Product Description
Shenzhen Yizexin High quality Membrane switch
Main Material and Technical Specifications:

Name:	membrane switch
Colortrans:	green/grey/blue/white/black or according to your preference
Feature:	enclosed and waterproof can used at any environment
Certificate:	OHSAS18001:2007,ISO14001:2004,ISO/TS16949:2009 ISO13485:2003,TUV,UL,SGS,ROHS,FCC,CCC,CE,ASTM-F963-16
Custom Made:	OEM/customize
Material:	PC/PVC/PET/PCB/FPC/PMMA/Silicon
Operation Temperature:	-40ºC~70ºC
Resistance:	<100MΩ,250VDC
Contact resistance:	0.5-10Ω
operating voltage:	≤50VDC
Rated current:	25-100MA,0-30VDC
Work current:	≤100MA
Storage Temperature:	-40ºC~+80ºC
reliability/service life:	≥1million times
Operating humidity:	40°C,<98%RH
Rebound time:	≤ 6ms
Base Material Voltage Durable:	2000VDC
Tail flexiblility:	any angle within 180 degree
insulation ink voltage:	100VDC
Back Adhesive:	3M9498A 3M467 3M468 3M200
Conductive Ink:	Screen printing silver ink,Carbon ink

Features & benefits of membrane switches include:
It is a sealed entirety made of three or more different materials membrane adhere.It has the advantages of small size,light,weight,good sealing,original good appearance. Applications:
It can applied to the instruments,numerical control machine,fridge,washing
machine,microwave ovens and other domestic appliances and industrical
control areas.
What is a "Membrane Switch"?
A membrane switch is a printed electronic circuit that uses pressure to open and close a circuit. The membrane switch circuitry is most often screen printed using conductive inks, which are typically made of silver, carbon, and/or graphite.Membrane switches are part of a range of devices considered to be user interfaces (also called operator interfaces, or man-machine interfaces) along with display-based touch screens, and mechanical switches such as push-button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to serve as the interface between man and machine, enabling an operator to communicate with a piece of equipment, instrument, or machinery. How are membrane switches constructed?
Membrane switches are essentially a sandwich of thin layers that are bonded together using pressure sensitive adhesives. Depending on the application requirements, a membrane switch will consist of as few as 4, and as many as 9 layers. In contrast to mechanical switches, membrane switches offer the advantage of lower cost, they consume less design space with their low profile, are easy to clean, and they offer a sleeker, ergonomic, and aesthetically pleasing appearance. The visible top layer of a membrane switch is the graphic overlay, with printed circuitry underneath the overlay. The circuitry can also incorporate different layers such as polyester (silver flex), polyimide (copper flex), and rigid PCB layers. Activation of a switch occurs when a printed shorting pad or metal dome makes contact with the bottom circuit layer thus, closing the circuit.
What industries use membrane switches?
Membrane switches can be found in a variety of different industries. Medical instrumentation and laboratory equipment are ideal markets for membrane switches. These switches can be designed to be sealed from moisture and contaminants and with anti-microbial coatings to resist bacterial growth and harsh chemicals. Membrane switches are also utilized in industries such as electronic test and telecommunication networking equipment. Industrial controls and fitness equipment are also industries where membrane switches are the user interface of choice. About our company:
We have three companies,more than 500 workers in it.Our companies are specialized in the production of membrane switch,nameplate,lenses,crystal glue Acrylic craftwork,cartoon frameand so on.We have large dust-free workshop,full automaticsilkscreenprintingmachine,colorprintingmachine,CNCengravingandmillingmachine,numericalcontrolcuttingmachine,punchandsomeothermodernproductiondevices.BT,ZTE,SEMTECH,Emerson,Delong,FerroliMotorola,Haier,Electrolux,Guangbao are all our cooperate partners. We are authorized by such as China famous quality products,quality service products AAA enterprise,OHSAS18001:2007,ISO14001:2004,ISO/TS16949:2009ISO13485:2003,TUV,UL,SGS,ROHS,FCC,CCC,CE,ASTM-F963-16.I can assure you of our best qualitly. Look forward to cooperating with you .
