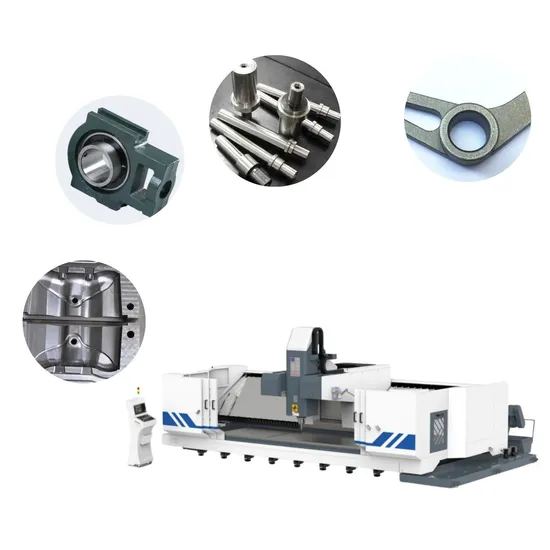

High Precision Milling and Drilling CNC Machine 3 Axis Long- Travel Moving Column Machining Center PCD-CNC4008b/4012b/6008b/6012b

Product Description

Feature: The PCD model CNC machining center is capable of machining lengths ofmetal profile, such as aluminum, steel, copper. It also has the capability ofmilling, drilling and tapping.
PRATIC uses either FANUC or SIEMENS CNC operating controller for this model.
The double-arm moving column structure adds strength and stability to themachine. This machine has high accuracy.
Has a large bevel accordian cover for protection of the quideways.
The auto chip conveyor is standard configuration which makes it easier for chip removal.
This PCD model is widely used in the industries of electronic applianceaerospace, railways, automobile industry, and machinery parts.
Specifications :

Model No.	PCD-CNC4008B	PCD-CNC4012B				PCD-CNC6008B	PCD-CNC6012B
Travels
X-Axis	4000 mm	4000 mm				6000 mm	6000 mm
Y-Axis	800 mm	800 mm				1200 mm	1200 mm
Z-Axis	600 mm	600 mm				600 mm	600 mm
Spindle
Maximun speed	8000 rpm	8000 rpm				8000 rpm	8000 rpm
Taper	BT50/SK50/CAT50	BT50/SK50/CAT50				BT50/SK50/CAT50	BT50/SK50/CAT50
Tool Magazine
Type	Umbrella type	Umbrella type				Umbrella type	Umbrella type
Capacity	16 pcs	16 pcs				16 pcs	16 pcs
Max tool Diameter/Length/Weight	ø110mm/210mm/15kg	ø110mm/210mm/15kg				ø110mm/210mm/15kg	ø110mm/210mm/15kg
Tool-to-tool time	6sec	6sec				6sec	6sec
Axis Feed Rates
Rapid on X	40 m/min	40 m/min				40 m/min	40 m/min
Rapid on Y/Z	30/20 m/min	30/20 m/min				30/20 m/min	30/20 m/min
X/Y/Z Programmable Cutting Feed	15000 mm/min	15000 mm/min				15000 mm/min	15000 mm/min
Operating System	FANUC SIEMENS	FANUC SIEMENS				FANUC SIEMENS	FANUC SIEMENS
Motor Power
Spindle Driven Motor	15/18.5 KW 17/42.4 KW	15/18.5 KW 17/42.4 KW				15/18.5 KW 17/42.4 KW	15/18.5 KW 17/42.4 KW
X/Y/Z-Axis Drive Motor	3.0/3.0/3.0 KW 5.2/3.1/5.2 KW	3.0/3.0/3.0 KW 5.2/3.1/5.2 KW				3.0/3.0/3.0 KW 5.2/3.1/5.2 KW	3.0/3.0/3.0 KW 5.2/3.1/5.2 KW
Lubrication and Cooling System
Lubrication System	Automatic	Automatic				Automatic	Automatic
Coolant System	Water base	Water base				Water base	Water base
Accuracy
X-Axis Positioning accuracy	0.03mm	0.03mm				0.03mm	0.03mm
Y/Z-Axis Positioning accuracy	0.015 mm	0.015 mm				0.015 mm	0.015 mm
X/Y/Z-Axis Repeat positioning accuracy	0.01mm	0.01mm				0.01mm	0.01mm
Mechanical Specification
Required pneumatic pressure	6 kg/cm²	6 kg/cm²				6 kg/cm²	6 kg/cm²
Machine height	3700/3600mm	3700/3600mm				3700/3600mm	3700/3600mm
Machine footprint(LxW)	9300-11300x3150-3500mm	9300-11300x3150-3500mm				9300-11300x3150-3500mm	9300-11300x3150-3500mm
Machine Weight	19000-24000 kg	19000-24000 kg				19000-24000 kg	19000-24000 kg

Workshop

FAQ

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
