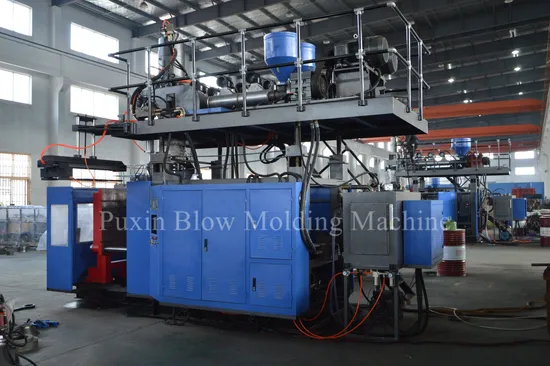

China Supplier Automatic Extrusion Plastic Big Water Tank Container Blow Molding/Moulding Equipment
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
PXB100B
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Bottom Blowing
Available
Material
PP, PE, ABS...
Total Weight
15.0t
Output(Dry Cycle)
320 PC/Hr
Die Head Option
Accumulator Head
Transparent Line
Available
Production Usage
Toys, Auto Parts, Drum, etc
Multi-Layer
Available
Multi-Color
Available
Screw Diameter
100mm
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 120L
Trademark
Puxin
Origin
Suzhou
HS Code
847730100
Product Description
PXB100B
90L-120L Blow Molding Machine
- Double Drawbar clamping mechanism
- Perfect Usage for Chemical Drum, Road barrier, ABS car bumper
- High clamping force with short production cycle
- Patented Technology Die head system
- Optional Transparent line
Configuration List
| PLC | MITSUBISHI | Japan |
| Touch Screen | HITECH | Taiwan |
| Inverter | MITSUBISHI | Japan |
| Power Supply | MEAN WELL | Taiwan |
| Relay | OMRON | Japan |
| Hydraulic Valves | YUKEN | Japan |
| Hydraulic Pump | YUKEN | Japan |
| Contactors | LS(LG) | Korea |
| Solid relay | FOTEK | Japan |
| Breaker | LS(LG) | Korea |
| Temperature Control Module | MITSUBISHI | Japan |
| Oil Sealing | DZ | Taiwan |
| Oil Tube | LIEBAO | Taiwan |
| Transducer | GEFRAN | Italy |
| Proximity Switch | SONON | China |
| Motor | SIEMENS | China |
| Air Valve | FESTO | Germany |
| Parison Controller | Moog | Japan |
| Servo Valve | Moog | Japan |
Parameters:
| Material | PE,PP,ABS... | |
| Max container capacity | L | 120 |
| Output(dry cycle) | pc/hr | 320 |
| Machine dimension(L×W×H) | M | 6.2×2.8×4.6 |
| Machine weight | T | 15 |
| Clamping Unit | ||
| Clamping force | kn | 450 |
| Mold platen size(W×H) | mm | 1200×1200 |
| Platen opening stroke | mm | 600-1400 |
| Platen moving stroke | mm | 700 |
| Max mold size(W×H) | mm | 900×1400 |
| Mold thickness | mm | 510-650 |
| Power | ||
| Servo oil pump motor power | KW | 18.5 |
| Servo pump displacement | L/MIN | 120 |
| Blow pressure | MPA | 1 |
| Air consumption | M3/MIN | 1.8 |
| Cooling water pressure | mpa | 0.4 |
| Water consumption | L/min | 180 |
| Average energy consumption | KW | 52-60 |
| Extruder unit | ||
| Screw diameter | mm | 100 |
| Screw L/D ratio | L/D | 24 |
| HDPE Melting capacit for HDPE | kg/hr | 160-200 |
| Number of heating zone | zone | 5 |
| Screw heating power | kw | 25.1 |
| Screw fan power | KW | 0.6 |
| Extruder motor power | kw | 55 |
| Die head | ||
| Number of heating zone for single die head | zone | 5 |
| Heating power for single die head | kw | 26 |
| Max die-pin diameter | mm | 450 |
| Accumulator capacity | L | 12(15) |
| (HDPE) Accumulator weight(HDPE) | KG | 9(11) |
Delivery Time:
- No later than 65 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
