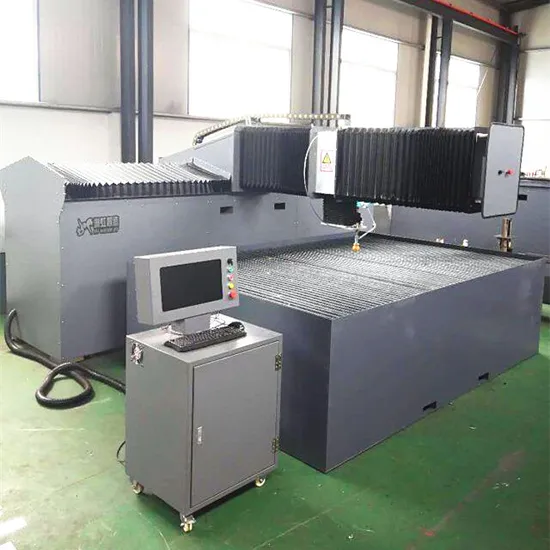

CNC Ce Certificate Water Jet Cutting Machine Gantry Type

Product Description

Waterjet cutting machine is made up of 4 main components: Cutting table, CNC controller, Auto abrasive feeder, Intensifier pump.
please contact me for more infomation

cutting table	model		1313	2015	3020	4020	6020	customized size
	structure	gantry water cutting platform/cantilever series cutting platform
	travel	X Axis	1300mm	2000mm	3000mm	4000mm	6000mm
		Y Axis	1300mm	1500mm	2000mm	2000mm	2000mm
	speed	Max.move speed (x axis and y axis)	6000mm/min
		Max.move speed (z axis)	1000mm/min
	Accuracy	Positing Accuracy	0.127mm
		Repeat Accuracy	±0.076mm
	Water tank maximum Loading Capacity	300Kg/m2
Cutting head	3 axis / 5 axis Movement : Linear motion/Rotary motion
cnc controller	15 inch LCD montior Support DXF and NC code file Software: Windows 7 Resistance of the shoch and electro-magntic
	the key function Forward & Backward processing function Even pace control function Small arcs speed auto processing function Circle processing function
	Partial and smooth processing modes
aabrasive feeder	Max. inlet air pressure : 0.2-0.4 Mpa Min. inlet air flow:0.028m3/min Abrasive capacity:170 L
	features Air valve to prevent jams and breakages Auto control with CNC auxiliary function Self sealing Slightly adjust the FLOW
intensifier pump	Reted power : 50HP (37 KW) Max.pressure : 60000psi (4137 bar) Control voltage and cuttent : 24DC,10AMPS Ambient temperature : 5-40 ºC Fuel tank capacity :114L Cooling flow : 11.4L/MIN Attenuation : 1L Long : 1473 MM Width : 1205 MM High : 1056MM
direct drive pump	Reted power : 30HP (22KW) Output pressure : 55000psi Max.pressure : 60000psi (4137 bar) Air: 80-120psi Operating voltage and power:210-240/360-420V 50HZ Ambient temperature : 5-40 ºC Min.inlet water : 60psi 1 gallon/min. Pump speed: 720 rmp Fuel tank capacity : 2.6 L Weight :700kg

Shanghai yuanhong ultra-high pressure water jet technology co.,ltd is a professional engaged in ultra-high pressure water jet equipment research and development,produuction,sales,service as one of the water jet equipment suppliers.
The company brand "Water Jet"CNC bed,for several years in product research and development,the high precision electronicequipment manufacturing,machining experience,in view of the present water jeet status quo of technique and technology of the nc machine tools is uneven,its study unceasingly,improving and perfecting,successfully development the microelectronics industry water jet nc machine tool,and the automatic registration of the world's most advanced vision platform technology application on the water cutting equipment,makes the water jet "Water Jet " cutting equipment precision,efficiency and cutting property are better.
Yuanhong ultra-high pressure water jet technlogy co.,ltd cooprerate with many world famous companies,including vibration hong and Taiwan,the United States of silver PSP(Puget Sound Precision),the company in adition to the water cut of all products,also the AD hoc ultra high pressure r&d center,hired former domestic and foreign well-known water jet cutting company technology personnel as the research and development personnel, and hired well-know Dr Materials of colleges and universities to provide technical support, including Beijing university of aeronautics and astronautics and so on.
The company will in line with "customer first, quality first" the idea, the full use of the various water jet essence, according to the customer need to configure the best solutions and services for the user.
We are a high-tech enterprise with 30 technical patents, including (CE / ISO 9001), and the Chinese Academy of Sciences, the boss had a world-class company engineers engaged in more than 10 years, has a wealth of experience, for the product we maintain lifelong high-pressure parts (Except wearing parts), the company sold more than 1680 kinds of products, we have a big enough advantage compared with the market.
