Aluminum Sheet Building Roof Ridge Cap Roll Forming Machine

Product Description

Product Description

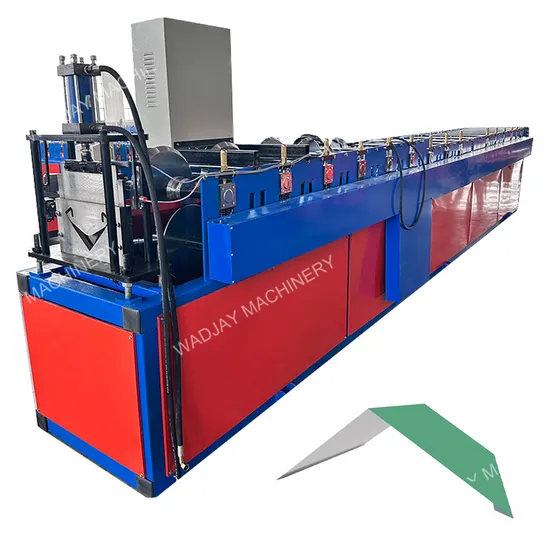

Metal Tile Roof Ridge Cap Roll Forming Machine
Suitable Raw Material of Metal Tile Roof Ridge Cap Roll Forming Machine

Material	Galvanized Steel Coils
Thickness	0.5-0.8mm
Coil width	325mm
Yield Strength	235Mpa

Details of Metal Tile Roof Ridge Cap Roll Forming Machine
Roller of ridge cap roll forming machine
With feeding material guide, body frame made of steel type H450 by welding Side wall thickness: q235 t18mm ; 45# steel rollers, CNC lathes, heat treatment, hard chrome plated With a thickness of 0.04mm Shaft diameter=ф75mm, precisely machined Gear/gear drive to form about 14-step Main motor=11KW, frequency control All screws are grade 8.8
PLC Control System of ridge cap roll forming machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Auto Cutting of ridge cap roll forming machine
The whole line adopts PLC control, LCD display touch screen, man-machine interface.
You can set any length and quantity
Hydraulic Power Station of ridge cap roll forming machine
It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic
cylinder to realize the cutting function.
The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.
