Household Copper Wire Industrial Cable Zipper Granulator Separation Recycling Machine

Product Description

Product Description

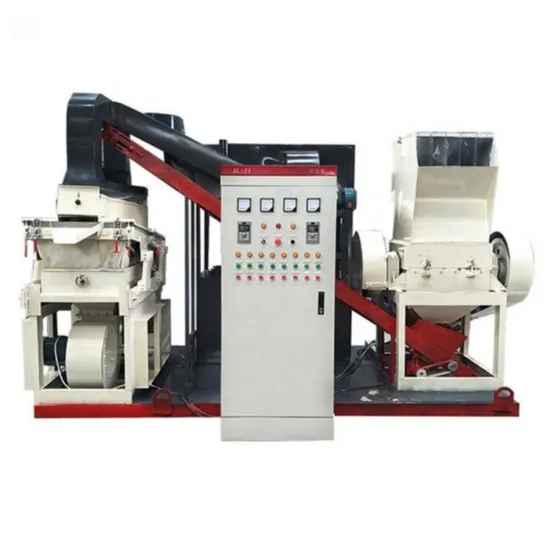

Household Copper Wire Industrial Cable Zipper Granulator Separation Recycling Machine
Copper wire granulator machine adopts advanced design, reasonable structure and reliable operation.This production line can not only deal with the coarse thread that ordinary crusher can deal with, but also has a good separation effect to the very fine thread.it is dry type structure,which includes crushing system, conveying system, dust removal system, gravity separation system, tailings screening system and control system.
Scarp of application waste copper wires crushing machine:Crushing and sorting of various waste wires, sorting of broken copper, aluminum, and iron of copper aluminum radiator.
Cable Recycling Plant Features
1. Large handling capacity, suitable for large scale production.
2. Manual feeding material for one time, multiple machines combined for automatic separation.
3. Adopting PLC to control the whole system, having stable performance.
4. The copper recycling rate can reach 99%.
5. The plant adopts air and vibration separation, no water pollution.
6. Equipped with dust collector, no dust pollution.
7. The voltage can be customized according to your requirements. Product Parameters

Model	MCT-400	MCT-600	MCT-800			MCT-1000
Output	100-150kg/h	200-300kg/h	500-600kg/h			800-1000kg/h
Total Power	27kw	42.25kw	57kw			87kw
Feed diameter	1-20mm	1-20mm	1-20mm			1-20mm
Output size	<3mm	<3mm	<3mm			<3mm
physical dimension	3*1.8*2 m	3.5*2*2.4 m	4*2*2.4 m			4.8*2.5*2.4 m
Weight	2000kg	3000kg	4000kg			5000kg

Detailed Photos
Each step is controlled by the PLC program, one key to start and stop. The video of the operation interface shows the working status of important components, and intelligently displays equipment failures. It is easy to operate and maintain, and the separation purity can reach 99%. The single core diameter is ≥0.2mm. Different types of equipment have different input capacities, and the capacity range can range from about 200 to 1000 kg/hour.
Packaging & Shipping
Copper wire recycling equipment type 400 is packed in wooden cases, and type 600 or more is put into containers
Company Profile
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
FAQ
1,How do I get the right device for my needs? Tell me what are your raw materials? Metal, plastic, wood, plants, copper wire and more? What is the approximate size of the raw material in millimeters? Describe the shape of the raw material. How many kilograms of raw materials are processed per hour? Capacity 500-1000kg or 5000-8000kg? What is the final product? 50mm blocks or separated metal and plastic particles and so on? 2,Why choose us?We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
