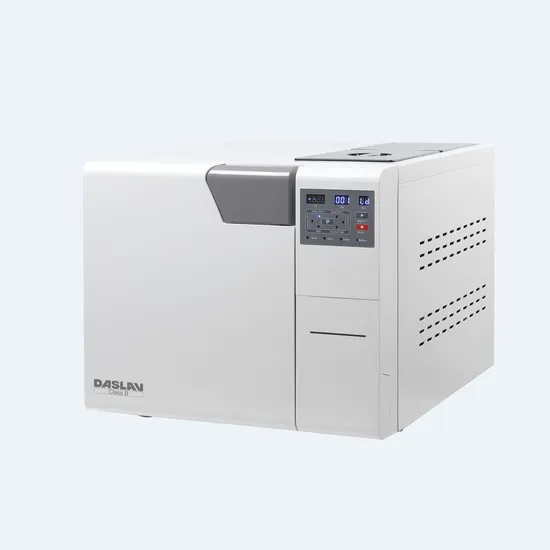

Yeson 23L Class B Tabletop Press Steam Autoclave for Sterilization

Product Description

YESON STERILIZER DASLAV SERIES C,CLASS B,23L
A sterilizer of classic + innovative.
FEATURES:
1) Invisible finction area with opening angle 180 degree (max) Barrier-free.
2) Drainage Pipe Plug & Pull Design
Quickly and easily.
3) High Reliability
The 3-year period of failure-free rate >95%.
(Data from the statistics of 40000+ sterilizers installed in Europe.)

4) Compliance with European standards completely
5) Ergonomic big door handle
6) Clean water tank and waste water tank are separated
7) Electronic + Mechanical locker system
8) Short circuit safety protection
9) Built-in Printer
TECHNICAL DATA

Power supply	230V/50Hz/1950W
Clean water tank	4.5L
Waste water tank	4.0L
Chamber size	ø254X450mm
Capacity	23L
Product size (Width*Depth*Height)	500X620X430mm
Net weight	52Kg
Gross weight	60Kg
Installation size	600mm
Material of chamber	Stainless steel 304

Parameters of the sterilizer

Program	Sterilizing temperature	Holding time(Min)	Vacuum times	Dry time(Min)	Cycle Type
134ºC/Universal	134ºC	4	3	15	B
134ºC/Solid	134ºC	4	1	5	S
121ºC/POROUS	121ºC	4	3	15	B
121ºC/SOLID	121ºC	4	1	5	S
B-D /Helix test	134ºC	3.5	3	4	Test program
Vacuum test	Vacuum to -80kPa,holding 15min				Test program

ABOUT YESON NINGBO HAISHU YESON MEDICAL DEVICE CO., LTD is a high-tech company, who is engaged in the R&D, production and marketing of products of medical sterilization chain since 2005. We are aiming at being a world-class sterilization solutions supplier and committed to creating efficient disinfection space for users.
2005 66 86 YESON FOUNDED PATENTS CERTIFICATES
Our products include tabletop autoclaves from 3L to 45L, handpiece lubricating machine, fast-cutting pouch sealer, ultrasonic cleaner, etc.Relying on our strong technology , we update and develop new products every year. Our products are well sold over 80 countries all around the world till now. In 2021, our steam autoclave sale volume ranked No 1 in Chinese autoclave industry.
We have ISO13485 and CE certificates approved. In September 2021, Yeson is the main drafter,the "ZHEJIANG MADE" institution standard <Micro Tabletop Type B Steam Sterilizers> was published officially. In June 2022, the first in the industry, we acquired the "ZHEJIANG MADE" certificate.
