Schenck Horizontal Balancing Machine Hm6-Hm80

Product Description

Universally applicable with modular design;
High precision and efficiency
Safe handling through economic design concept;
Hard-bearing principle ensures quick change-over from one workpiece to the next;
Permanent Calibration, time and cost savings by elimination of calibration runs;
Provides for correction in two planes or separate correction of static and couple unbalance
Optional with belt drive and universal-joint drive for different type of rotors.
Advance measuring instrument CAB708, optional CAB 920 - the high end solution
Upgradeable by many additional modules e.g. for mass correction With the appropriate machine design and a suitable protection device the machines can also be used for high-speed balancing: Bearing
force monitoring for automatic shut-down in case of overload;Contact-free measurement of concentric running of rollers Shielded sensor en case of magnetized rotors
Range of Application
Universal balancing machines series HM6-HM80 offers high precision and a wide application. It features permanent calibration, ergonomic structural design, and a user-friendly operating system. This machine is suitable for balancing both rigid and flexible rotors, weighing between 500KGS to 250T
Typical applications are:
Blowers and fans for a variety of industries
High-speed and low-speed rollers for paper and thin sheet production
Electrical short-circuit armatures and generators for the electrical industry
Separators / centrifuges for water processing.
The length of the machine bed is dependent on the length of the rotor, the required height of the bearing pedestals is determined by the rotor diameter. If the rotor is mounted on its own bearing journals, these will be supported by roller carriages. Depending on the requirements imposed by the rotor, sleeve bearings may also be used.

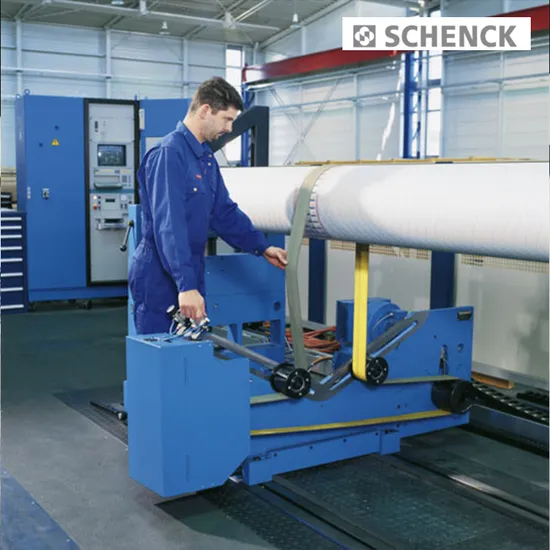

Rotors requiring high torques are driven through variable-speed gearboxes and universal joint shaft. Lightweight rotors with smooth surfaces may be driven with the help of a belt drive system.
Schenck universal balancing machines series HM are a highly efficient investment both for one-off rotors and for small batches.
Technical Specifications

Rotor Data/Machine Size	unit	HM6	HM60	HM7	HM70	HM8	HM80
Max.rotor weight on rollers	kg	12500	20000	32000	50000	125000	250000
Max.rotor diameter above machine base	mm	2100	2100	2800	2800	3600	3600
Entendable to max.rotor diameter	mm	3000	3000	3600	3600	5000	5000
Journal diameter range	mm	40-180	50-200	60-250	70-300
Extendable journal diameter range	mm	180-320	200-400	250-500	300-600	special	request
Wn²-vale for permanent calibration	106kg/min2	1800	2250	4000	5000	6500	8000
Umar(based on CAB708 at apprx.1000 rpm)	gmm	30	40	64	80	160	240
Unbalance reduction ratio(URR)	%	95
Technical Data with End Drive
Basic machine base length	mm	6000	6000	6000	6000	9000	9000
Min.distance from coupling flange of drive shaft to the center line of the right bearing pedestal	mm	4500	4500	4360	4360	8700	8700
Min.distance between the bearing pedestal center lines	mm	240	240	480	480	300	300
Recommended drive power	kw	DC37/55/75	DC37/55/75	DC55/75/90	DC55/75/90
with gear box approx.	min-1	20-220/40-440/25-1250
with stepped pulley approx.	min-1
Technical Data with Belt Drive
Basic machine base length	mm	4500	4500	6000	6000	9000	9000
Min.distance from coupling flange of drive shaft to the center line of the right bearing pedestal	mm	4270	4270	5550	5550	8500	8500
Min.distance between the bearing pedestal center lines	mm	240	240	480	480	300	300
Recommended drive power	mm	520	520	750	750	1500	1500
with gear box approx.	kw	DC22/37/55	DC22/37/55	DC37/56/75	DC37/56/75
with stepped pulley approx.	mm	50-1000	50-1000	50-1000	50-1000	100-1250	100-1250
Length of machine base	mm
Max.distance between bearing pedestal center lines	min-1	120-1200/170-1700/250-2500		100-1000/140-1400/210-2100
Min.distance between bearing pedestal center lines	mm	200	200	300	300	special	request
