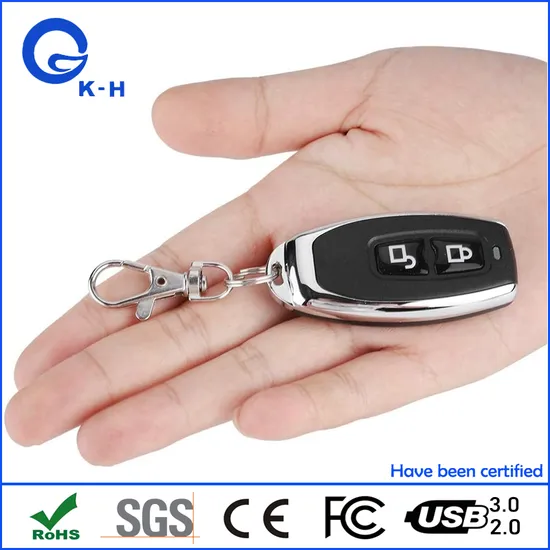

Remote Control 1527 Learning Code Wireless Remote Control Transmitter 433MHz 2 Buttons

Product Description

Features:
Easy to use, the 4 channel remote control system lets you take control of your gadgets, car, home and garage.
This is not a complete list! If your remote uses the 433MHZ frequency it will work with the remote duplicator (note: rolling code remotes will not work).
IC model of original remote control is 2262 2260 1527 2240 and compatible IC.
The battery used in the product is 27A 12V please replace the battery when the remote control distance is insufficient.
Clone up to 4 remote signals from 4 different remotes.

Transmission Speed:	50-60KHZ
Working voltage:	DC9V
Working current:	<=12mA
working frenquency:	315MHz/433MHz/868MHz,other
Transmit power:	>=10mW
Frenquency Windage:	±0.2MHz
Transmission distance:	100 meters(Open space)
Oscillation resistance:	According to customer's request
Chip and Operating mode:	1527, 2240, HT6720B, HT6P20D, COPY, ETC

Descriptions:
With this remote control, you can control all 433MHz fixed code key fobs.
Some remotes that use this frequency are listed below.
4-Channel RF Wireless Remote Control Duplicator for Cars, Garage Doors, Gate Doors, Alarm Systems etc.
This is a fixed frequency remote cloner (433mhz) for copying common fixed and learning code remote controls.
Specifications:
Package Weight: 33g
Size: 61*29*12mm
Color: Black
Operating frequency: 433MHz
Powered by 27A 12V battery (included)
Channel: 4
Distance: Up to 100 meters
Application: Duplicate Your Existing Remote Controllers
Application example 1: Vehicle central locking systems
Application example 2: Garage doors access control system
Application example 3: Electronic gates access control system
Application example 4: Electrical appliances control
Application example 5: Car sunroofs control
Application example 6: Heating systems control
Application example 7: Light Switch
Package included:
1 x Remote Control
Scenarios used 1. Code clearing method:At the same time, press and hold the above two keys (e.g. a and b) to make the indicator light flash quickly for three times, one
hand does not loosen, and the other hand repeatedly presses three times to make the indicator light flash and release. When you
press the key again, the indicator light will not light up, indicating that the data is cleared successfully. 2. Copy method:After code clearing, put the copy remote control together with the original remote control, press and hold the two keys to be
copied (e.g. a -) at the same time, and let go after the indicator light of the copy remote control starts to flash, indicating that the copy is successful, and copy other keys in turn as required. (Note: the copy remote control should be as close as possible to the original remote control to improve the copy accuracy. When you press the key again after the copy is successful, the indicator light is always on, indicating that the copy is successful.)
3. Recovery method:When you accidentally clear the data in the copy remote control, you can press the two
buttons at the bottom of the copy remote control at the same time, and the indicator light will flash quickly for about 2 seconds.
After you let go, press any button, and the indicator light is always on, indicating that the previous data has been recovered. Be
sure to clear the original data in the copy remote control before copying other remote controls.
NOTE:This product can copy the remote control with the following chip inside: PT2264, PT2262, PT2260, PT2240, SC2262, SC2260, EV1527,SCT527, HS1527, HS2240, SCL1527, FP1527. If you fail in copying with proper operation, you might have to check whether your device has a chip above.If IC chips can not match, it will not be copied, please verify the chip model before you buy.
