Diesel Forestry Jing Gong Sugar Cane Loader for Sale Loaders
| US$28,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JG90Z
Application
Straw, Sugarcane
Power Source
Diesel
Harvest method
Grapple
Drive Type
Internal Combustion Drive
Transmission
Hydraulic Transmission
Portable Harvester Type
Excavator
Certification
ISO9001:2008, CE
Color
Customizable
Condition
New
Application Field
Agriculture, Forestry
Size
Small-Sized
Transport Package
Nude Packing
Specification
6000*2100*2850mm
Trademark
JING GONG
Origin
China
Production Capacity
3000sets/Year
Product Description

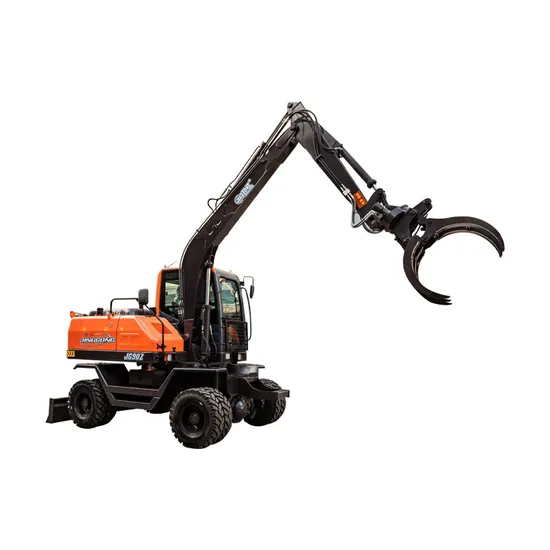

JG90Z Mini Excavator Grapple for Log Sugarcan Bamboo etc. is one of the most popular grapple wheel excavators of our company. As early as 2009, we had started our research and design of it. After years of careful innovation and trials, this excavator now shows excellent working efficiency and stable performance, contributing to a wide application in China and Southeast Asia.
The grab has a 360° rotation angle, realizing a significant decrease in loading and unloading time and cost of woods, sugarcanes or other similar materials. In addition to this, it also provides a high degree of security and safety and brings abundant social and economic benefits to clients.
| SPECIFICATIONS OF JG90Z GRAPPLE EXCAVATOR | ||||||||||
| RANGE OF OPERATION | Boom Length | 3475~3670mm | ||||||||
| Arm Length | 1860mm | |||||||||
| Max Radius Of Capture | 6000mm | |||||||||
| Grab The Biggest Opening Width | 1250~1500mm | |||||||||
| Grab The Minimum Opening Width | 200~300mm | |||||||||
| Maximum Radius Weight Capacity | 0.5~0.6t | |||||||||
| Grapple Rotation Angle | 360° | |||||||||
| Max Dumping Height | 4700mm | |||||||||
| Back-End Radius Of Gyration | 1775mm | |||||||||
| DIMENSION | (Length*Width*Height) Travel Position | 6000*2100*2850mm | ||||||||
| Wheel Base | 2600mm | |||||||||
| Track(Front/Rear) | 1660mm/1580mm | |||||||||
| Ground Clearance Of Counterweight | 1060mm | |||||||||
| Min Ground Clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle Of Rotation | 360° | ||||||||
| Machine Weight | 6500kg | |||||||||
| Engine Model | YN38GB2/4100 | |||||||||
| Rated Power | 58.8kw | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic System Working Pressure | 19.5Mpa | |||||||||
| Hydraulic system flow | 110L/min | |||||||||
| Metering gear pump | 2*25ml/r | |||||||||
| Grapple Swing Speed | 15~30r/min | |||||||||
| Walking Speed | 36km/h | |||||||||
| Grade Climbing Ability | 58%/30° | |||||||||
| Tyre model | 825.16 | |||||||||
| Revolution overdrive pressure | 16Mpa | |||||||||
| Full Circle Swinging Time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥4L/h | |||||||||
| Capacity Of The Fuel Tank | 130L | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
