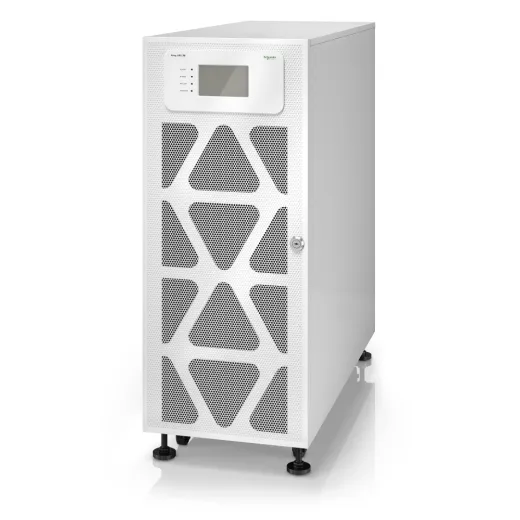

APC E3mups120khs UPS. Easy UPS 3m 120kVA 400V 3: 3 UPS

Product Description

Easy UPS 3S supplies power stability with robust electrical specifications and long-lasting performance to ensure your business continuity. Designed for fast and easy installation in the data center or electrical room, this EcoStruxure-ready UPS features a wide-operating temperature window and strong overload protection, all in a compact and lightweight footprint. These industry-leading features make Easy UPS 3S the easy choice for your business continuity.
Easy to install and start up
• Rolls into position quickly
• Minimal footprint requirement with lightweight, compact form factor
• Straightforward installation:
- Input, output, and bypass breakers are
included
- Emergency Power Off (EPO) switch
is included
- Easy Loop test verifies UPS performance
before you connect your load, without the need for a load bank
• Aesthetic design blends well into your installation environment
• Schneider Electric service team and certified service partners available to provide on-site start-up
Easy to use, monitor, and manage
• User-friendly display interface supports easy configuration
• With the optional SNMP card:
Monitor UPS status remotely through a
Web interface
- Monitor and manage UPS status and
performance through EcoStruxure IT's cloud-based and on-premise software suites
Easy to expand
Parallel up to four UPSs for capacity or redundancy
Easy to maintain
Front access for service
• Quickly and easily replace the dust filter conveniently located behind the magnetic front panel
• Schneider Electric service team available to make service easy and deliver peace of mind
Typical applications
• Small & medium data centers
and computer rooms
• Manufacturing facilities
• Telecommunication
• Commercial buildings
• Healthcare
• Transportation
TECHNICAL SPECIFICATIONS

Rated Power (kVA/kW)	60/60	80/80	100/100*	120/120*	200/200*
Normal AC supply input
Input Voltage (V)	380/400/415 V (Three-phase + Neutral)
Frequency (Hz)	45 - 65 Hz
Input Power Factor	Up to 0.99
THDI	<3.5% at full load
Input Voltage Range	342 V to 477 V at full load
Dual Mains Input	Yes (default: single main input)
Output
Nominal Output Voltage (V)
	3:3 - 380/400/415 V
Efficiency: Double Conversion Mode	Up to 96%
Efficiency: EcoMode	0.99
Overload Capacity in Utility Operation	125% for 10 minutes, 150% for 60 seconds
Output Voltage Tolerance	+/-1% static
Communication and management
Communication Interface	RS232, RS485, USB, Dry contact, Modbus TCP/IP, optional SNMP card
Control Panel	Multi-function LCD, status and display console
Weights and dimensions
Low frame, unpackaged/shipping dimensions (H × W × D, mm)	915 × 360 × 850 mm/ 1140 × 475 × 965 mm	915 × 360 × 850 mm/ 1140 × 475 × 965 mm	915 × 360 × 850 mm/ 1140 × 475 × 965 mm	1300 × 500 × 850 mm/ 1500 × 625 × 975 mm	300 × 600 × 850 mm/ 1500 × 725 × 975 mm
Low frame, unpackaged/shipping weight (KG)	109/133	140/164	145/169	193/223	304/338
Battery Catridge (coming soon) (1 string/4 modules), unpackaged/shipping weight	27 KG per module/28 KG per module
Regulatory
Safety	IEC/EN62040-1-1		Performance	IEC 62040-3
EMC/EMI/RFI	IEC 62040-2		Environmental	IEC 62040-4
