Concrete Diamond Wire Saw Machine for Stone Dressing and Concrete Block Cutting

Product Description

Product Description

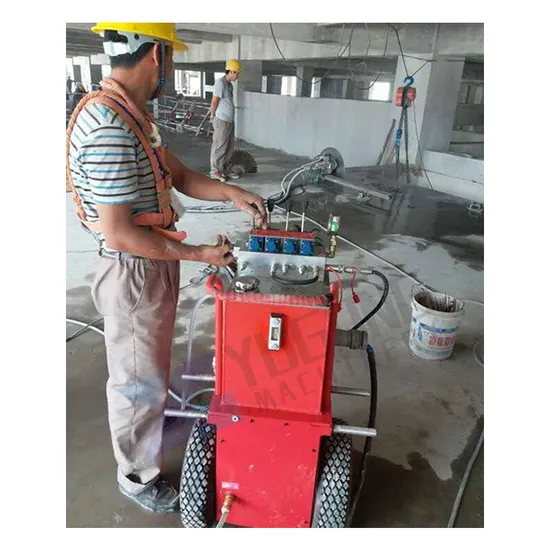

Hydraulic Wire Saw Machine Hydraulic Wire Saw Machine is used to cut concrete and rock walls and beams in construction of bridges, roads and tunnels. It is necessary for cutting and removing reinforced concrete such as bridge sections, jetties, columns, beams and mining rocks. Product Features: 1. Hydraulic-driven, Diamond Wire Saw Machine can work in different situations. 2. It's made of hard materials. The wedges are running stability. Long surviving life. 3. Powerful cutting ability, it can split the stone or concrete easily with no cutting depth limitation. 4. High Efficiency, and it's easy and comfortable to operate and maintain. Detailed Photos
Product Parameters

Hydraulic Pump	YG-25	Motor Power	25kw
Voltage	220V/380V, 50Hz	Motor Type	HM-80, 2 Cylinders
Rotation	1300r/min	Working Pressure	15-20Mpa
Weight	170kg	Size	720*650*1050mm
Frame & Wheels	Aluminum	Wheels	10
Weight	75kg	Size	90*90*1700mm
Diamond Wire Saw	Diamond Wire	Specification	φ11.5mm 40beads/m
Cutting speed	3~5m2/h	Wire life	2~3m2/m
