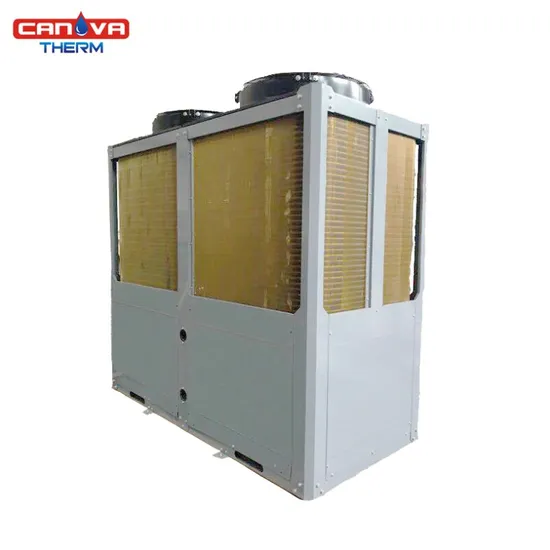

Stainless Steel 13.5kw-220kw Big Hotel Use Swimming Pool Water Heater Equipment Factory
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
HLRD150-YC
Work Environment
Low-temperature Heat Pump
Heat Source
Air-source
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Student Apartments
Certification
CE, ISO9001, CCC, CB, RoHS
Heating Capacity
220kw
Power Supply
380~415V/50Hz
Compressor Type
Scroll
Max Water Outlet Temperature
45c
Ambient Temperature
-7~43c
Refrigeration
R407c(R22/R410A)
Cop
4.64
Transport Package
Plastic Bag Inside with Wooden Frame
Specification
2400/2100/2060
Trademark
CANOVA
Origin
China Mainland(Guangzhou)
HS Code
8418612090
Production Capacity
600 Sets Per Week
Product Description
Stainless steel 220KW big pool heating equipment factoryThis series applies titanium heat exchanger and heat pump technology which can move heat from surrounding to the pool water.It is specially suitable for commercial swimming pool and it can supply heating in winter and cooling in summer.
| Model | HLRD45-YC | HLRD60-YC | HLRD75-YC | HLRD125YC | HLRD150-YC | |
| Heating capacity | Kw | 66 | 87.4 | 110 | 176 | 220 |
| COP | 4.46 | 4.65 | 4.72 | 4.66 | 4064 | |
| Cooling capacity | Kw | 44.9 | 59.5 | 75.0 | 120 | 150 |
| EER | 2.77 | 2.71 | 2.80 | 2.72 | 2.72 | |
| Max outlet water temp | ºC | 45 | ||||
| Power supply | V/Hz | 380~415/50 | ||||
| Rated input power(Heating/cooling) | Kw | 14.8/16.2 | 18.8/22.0 | 23.326.8 | 37.8/44.1 | 47.7/55.1 |
| Rated input current(Heating/cooling) | A | 28.1/30.8 | 35.7/41.8 | 44.3/50.9 | 71.8/83.8 | 90.0/105.0 |
| Max input power | Kw | 18.9 | 25.4 | 31.5 | 51.0 | 63 |
| Max input current | A | 35.9 | 48.2 | 59.8 | 97.0 | 120 |
| Ambient temp. | ºC | -7~43 | ||||
| Heat exchanger | Titanium tube in PVC shell | |||||
| Refrigerant | R407C(R22/R410A) | |||||
| Compressor type | Scroll | |||||
| Fan air flow volume | M³/h | 19500 | 28000 | 28000 | 56000 | 56000 |
| Fan discharging | Vertical | |||||
| Fan input power | W | 550*2 | 750*2 | 750*2 | 750*4 | 750*4 |
| Noise | dB(A) | ≤66 | ≤66 | ≤68 | ≤75 | ≤76 |
| Piping diameter | mm | Rc2-1/2'' | Rc3'' | |||
| Discharge pressure | Mpa | 2.5 | ||||
| Suction pressure | Mpa | 0.3-0.8 | ||||
| Rated water pressure | Mpa | 0.2-0.6 | ||||
| Water flow volume | M³/h | 28 | 37 | 47 | 75 | 95 |
| Product Dimension | mm | 1445/850/1850 | 1990/980/2045 | 1990/980/2045 | 2400/1900/2060 | 2400/1900/2060 |
| Net weight | Kg | 450 | 472 | 680 | 1160 | 1260 |
| Testing condition: | Heating: Ambient temp(DB/WB):24ºC/19ºC,62.5%RH,Inlet water temp(imput/output):26ºC Cooling: Ambient temp(DB/WB):43ºC/37ºC,68%RH,Inlet water temp(imput/output):32ºC | |||||
Features All range of capacity from 13.5KW to 220Kw Panasonic rotary/American Copeland scroll compressor Titanium tube in PVC shell heat exchanger Compact structure Intelligent defrosting Stable running,economic&durable Easy installation&operation Cooling in summer&heating in winter
Installation Diagram
