Forced Feeding Water Cooling PP ABS HDPE Scrpa Regrind Flakes Recycling Pelletizing Machine

Product Description

Product Description
Forced feeding water cooling pp abs hdpe scrpa regrind flakes recycling pelletizing machine
This plastic pelletizing machine is mainly used for the recycling granulating/pelletizing of clean and dry waste plastic ,by equipping with different feeding methods and cutting methods ,installating a forced feeding system can also be used for the pelletizing of film scraps materials. It can be applied to a variety of materials. It can be suitable for recycling and pelletizing of various types and properties material, such as PE, PE, ABS, PS , PC, PA, PVC and other materials . Through a screw feeder or belt conveyor feed recycled plastic to extrusion system, the screw is specially designed for pelletizing recycled materials. It has the advantages of fast and stable feeding, wear resistance, etc., with natural exhaust holes and a vacuum system ; It can effectively drain the water inside the material; the extruder uses cast aluminum heater or ceramic heater, which is durable; is equipped with an automatic hydraulic screen changing system to make the produced particles cleaner and higher quality;
Available materials
PE,PP,PS,ABS,PC,etc., crushed granules and plastic flakes.
Product Parameters
Technical date

Model	Screw Diameter(mm)	L/D	Motor Power	Capacity
GLP100	100	25-33:1	55kw	150-200kgh
GLP120	120	25-33:1	90/kw	250-350kgh
GLP140	140	25-33:1	132kw	400-500kgh
GLP160	160	25-33:1	160kw	550-650kgh
GLP180	180	25-33:1	185kw	650-800kgh
GLP200	200	25-33:1	250kw	800-1000kgh

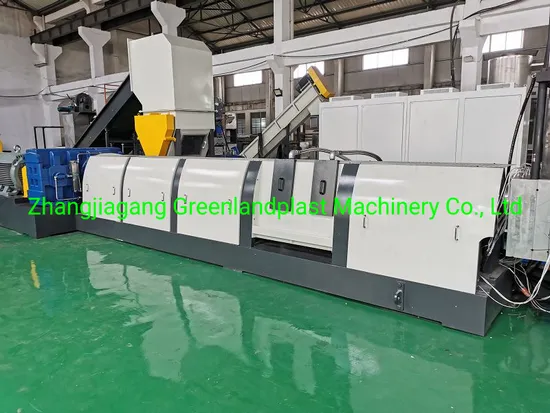

Detailed Photos
