New Horizontal Drilling Standard Wood Packing CE CNC Spindles Machine
| US$3,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AC-Wsk-8z
Controlling Mode
CNC
Number of Shaft
5
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Functions
Drilling, Milling, Tapping
Maximum Drilling Capability
Dia 50mm
Maximum Tapping Capability
M45(Able to Milling Thread)
Spindle Quantity
5
Position/Repeat Precision
+/-0.01mm
Spindle Motor
7.5kw
X Axis Work Stroke
520mm (Spindle Feed Stroke)
Y Axis Work Stroke
190mm(with Brake Function)
Z Axis Work Stroke
280mm (Main Spindle Travel)
Power Supply
380V, 50Hz
Transport Package
Standard Wood Packing
Specification
CE
Trademark
AC-WSK-5z
Origin
Nanan, Fujian
HS Code
84573000
Production Capacity
200 Sets
Product Description

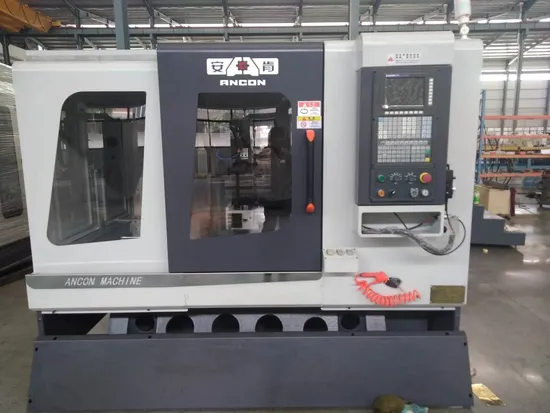

Horizontal CNC Drilling Milling and Tapping Machine AC-Wsk-8z
WIDELY USED FOR MASS PRODUCTION OF CARTRIDGE HOLE MACHINING
ADVANTAGES: 1) Over 20 years experience in brass casting and machining equipment. 2) First and most accepted China brand. 3) Most competitive price and quality. 4) Short delivery time. 5) Instant aftersale service on line. 6) Import and Export License. 7) OEM. APPLICATION: Widely used in Brass, Copper, Alumium alloy machining(Drilling and Tapping) for Plumbling Hardware, Faucets, Valves, Car Spares, etc..
Especially for the cartridge machining. SALE & AFTER-SALE SERVICE: Warranty 1 year free. Lifetime maintenance. Afersale service: instant and fluenct English service, by on line chatting, or by phone, or by local agent repair(such as India, Iyan, etc.), or other way by negotiation.
chinadelin.en.made-in-china.com MAIN TECH. SPEC:
| Name | Horizontal CNC 8 spindles drilling, milling and tapping machine | ||||||
| NO | Main configuration | Main configuration | Unit | Brand | Remark | ||
| Item | Name | ||||||
| 01 | X spindle | X spindle servo motor | 1.5KW | 1 | chinese | Max stroke 550mm, max speed 20m/min | |
| X spindle ball screw rod | R3210 | 1 | Hiwin or PMI | ||||
| X spindle line rail | RGH30HA | 2 | Hiwin or PMI | ||||
| 02 | Y spindle | Y spindle servo motor | Power 1.5KW | 1 | chinese | Max stroke 300mm, max speed 20m/min | |
| Y spindle ball screw rod | R3210 | 1 | Hiwin or PMI | ||||
| Y spindle line rail | RGH30HA | 2 | Hiwin or PMI | ||||
| 03 | Z spindle | Z spindle Servo Motor with Brake | Power 2KW | 1 | chinese | Max stroke 300mm, max speed 20m/min | |
| Z spindle ball screw rod | R3210 | 1 | Hiwin or PMI | ||||
| Z spindle line rail | RGH35 HA | 2 | Hiwin or PMI | ||||
| 04 | enclosure | Main spindle power 5.5KW main spindle speed 10-3500r/min quantity:8 sleeve stroke:80mm | 1 | ancon | |||
