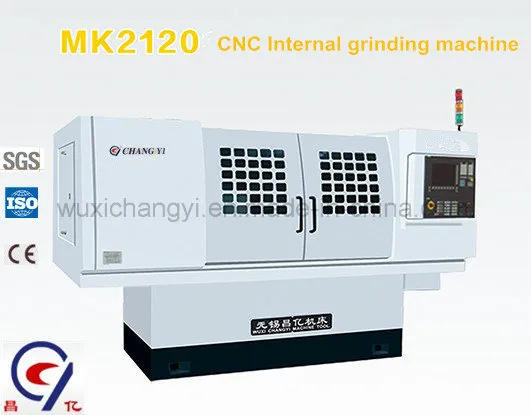

Mk2120 Gear Grinding CNC Grinder Tool Internal Grinding Machine
Basic Info.
Model NO.
MK2120
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Internal Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Roundness of Internal Hole
2um
Cylindricity of Intenral Hole
3um
Surface Roughness of Internal Hole
Ra0.4um
Transport Package
Waterproof Film Wrapped, Wooden Case Package
Specification
3100x2120x2000mm
Trademark
CHANGYI
Origin
Wuxi, China
HS Code
8460292
Production Capacity
20 Per Year
Product Description
* Main characteristics of this machine tool
* This machine tool is mainly used for grinding internal hole, internal end face, external end face, stepped hole of work piece;
* Setting and adjustment of machine tool parameters adopt touch screen. Human-machine dialogue can be realized;
* All the movable guide rails of machine tool adopt high-precision linear rolling guide rails which have good sliding performance. Screws for feed and reciprocating motion adopt high-precision ball screws;
* The feed system and reciprocating system of machine tool adopt Siemens servo system for double-axis linkage control.
* Grinding wheel spindle of machine tool adopt high-speed motorized spindle and is controlled by static frequency converter to realize stepless speed adjustment.
* The machine tool can be equipped with fixtures such as three-jaw chuck,hydraulic chuck,diaphragm chuck, pneumatic chuck,etc. for user to select.
* The machine tool adopt fully-closed shell with beautiful and elegant appearance.
