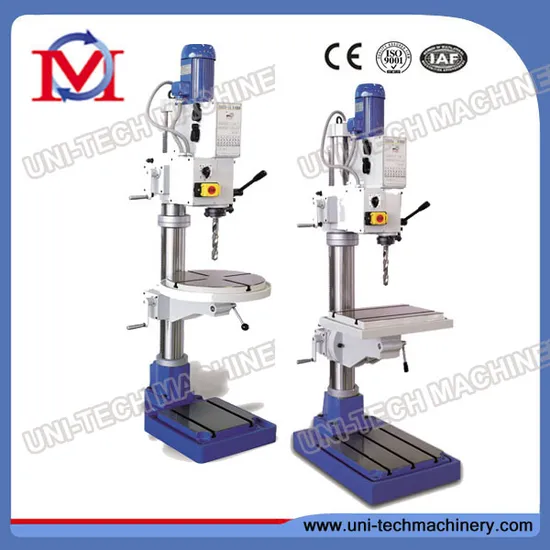

Pillar-Typr Gear Drive Drilling Machine (D4)
| US$800.00-2,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
D4
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max. Drilling Diameter(Steel)
25mm (1in)
Max. Spindle Travel
140mm (5 1/2 in)
Worktable
Can Be Rotated 360′or Leaned +-45
Taper of Spindle Bore
Morse No. 3
Feed Range of Spindle
0.08,0.16,0.24mm/R
Motor Power
0.75 / 0.55 Kw
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
100sets/Month
Product Description
Pillar-typr gear drive drilling machine( D4)1. Speed change with gear enables easy operation.
2. Hige spindle speed leads to wide speed range
3. Characteristic auto tool releasing device guarantees convenient tool change.
4. The work table provides easy operation
5. This machine can be used drilling, core drilling, reaming, boring, tapping, and chamfering, etc.
| Model | D2 | D3 | D4 | |
| Max. drilling diameter(steel) | 25mm (1in) | 25mm (1in) | 25mm (1in) | |
| Max. spindle travel | 140mm (5 1/2in) | 140mm (5 1/2 in) | 140mm (5 1/2 in) | |
| Taper of spindle bore | Morse No. 3 | Morse No. 3 | Morse No. 3 | |
| Distance from the centre of spindle to the surface of the vertical column | 225mm (8in) | 225mm(8 7/8 in) | 315mm(12 3/8 in) | |
| Max. distance from spindle nose to the surface of worktable | 620mm(24 1/2 in) | 660mm(26 in) | ||
| 8Spindle speeds range (8 steps) | 50HZ:100 ~ 2900 rpm , 60HZ:120~3480rpm | 50Hz: 100 ~ 2900 r / min 60Hz:120~3480 r/min | 50Hz: 100 ~ 2900 r / min 60Hz:120~3480 r/min | |
| Feed range of spindle | 0.08,0.16,0.24mm/r | 0.08,0.16,0.24mm/r | ||
| Max. distance from spindle nose to base plate | 445mm(16 in) | 1075mm(42 5/16in) | 480mm(18 7/8in) | |
| Max. distance from spindle nose to working surface of base plate | 400mm | 400mm | ||
| Dimensions of effective working area of worktable | 297×305mm (11×12in) *317×305mm(12×12in) | *Φ340mm(13.4 in) | 315X415mm (12 3/8 X 16 3/8 in) | |
| Dimensions of effective working area of base plate | 297×305mm (11×12in) *317×305mm(12×12in) | 305×297mm (12×11in) *317×305mm(12×12in) | 475X400 mm | |
| Motor power | 0.75 / 0.55 kw | 0.75 / 0.55 kw | 0.75 / 0.55 kw | |
| Overall dimension | 580×470×1000mm (22×18×39in) *590×545×1070mm (23×21×42in) | 640×470×1670mm (25×18×66in) *650×545×1740mm (25×21×68in) | 788X560X1820mm(31X22X72 in) *788X560X1835 (31X22X72.25 in) | |
| Package dimensions (L×W×H) | 740×490×1070mm (29×19×42in) * 750×550×1155mm (29×21×45in) | 1780×510×880mm (70×20×34in) *1860×550×900mm (73×21×35in) | 1900X590X1060mm | |
| N.W / G.W | 170kg/200kg *232kg/270kg | 243kg/299kg *270kg/350kg | 404kg/504kg *430kg/540kg | |
| *3-phase cooling pump | Model | AB12 | DB12 | DB-12 |
| Power | 0.04 kw | 0.04 kw | 0.04 kw | |
| Flow capacity | 12 L / min | 12 L / min | 12 L / min | |
| Specifications | 380V 50Hz | 380V 50Hz/ 22V 60HZ | 380V 50Hz/ 22V 60HZ | |
