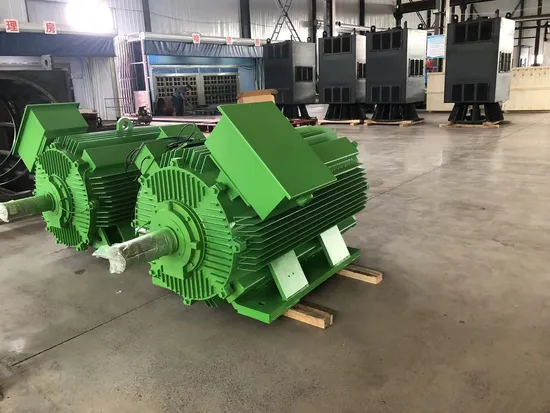

450kw 500kw 560kw 630kw 710kw 800kw Inverter Duty Electric Motor Low Voltage AC Motor
| US$7,200.00-9,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YE3-400-4
Number of Stator
Three-Phase
Species
Y, Y2 Series Three-Phase
Rotor Structure
Squirrel-Cage
Casing Protection
Closed Type
Number of Poles
4
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, CE, Eac
Brand
Langrui
Voltage
380/400/660V
Rated Power
450kw/500kw/560kw/630kw/710kw/800kw
Rotating Speed
1500rpm
Poles
2/4/6/8/10/12
Efficiency
Ie1/Ie2/Ie3
Frequency
50/60Hz
Insulation Class
B/F/H
Winding
100% Copper Wire
Working Duty
S1
Protection Grade
IP23/IP54/IP55/IP56/IP65
Mounting Type
B3/B5/B35/V1/V15
Cooling Method
IC01/IC06/IC411/IC416
MOQ
1 Set
Transport Package
Standard Export Packing
Specification
Cast Iron Casing
Trademark
LR
Origin
Shandong, China
HS Code
8501530090
Production Capacity
50000 Pieces/Year
Product Description
Product Description YE2/YE3 series 450kw 500kw 560kw 630kw 710kw 800kw Inverter Duty Electric Motor Low Voltage AC Motors are independently designed energy-saving products based on the energy efficiency limits and energy efficiency levels of small and medium-sized three-phase asynchronous motors standard GB/T1032-2023 of the People's Republic of China. The energy efficiency level complies with the IEC60034-30 standard.
YE2/YE3 series inverter duty electric motors are highly efficient, energy-saving and environmentally friendly. The new products integrate our company's decades of motor technology and production experience, and adopt new technologies, new processes and new materials to make the motor's efficiency indicators fully reach those of IE2/IE3. Indicator level, the motor has novel design, beautiful appearance, low noise, high efficiency, compact structure, easy use and maintenance. The motor adopts F-class insulation, and the temperature rise of the entire series is assessed according to B-class, thus greatly improving safety and reliability. The installation dimensions of the motor comply with IEC standards, and the enclosure protection grade is IP55.
YE2/YE3 series low voltage AC motor can be widely used in general working environments and machinery without special requirements, such as pumps, fans, compressors, machine tools, reducers, conveyors, packaging machinery, mining machinery, construction machinery, etc.
Product Range
| Single Phase Induction Motor | 0.12kw~7.5kw |
| Three Phase Induction Motor | 0.18kw~5600kw |
| Slip Ring Induction Motor | 4kw~5600kw |
| Explosion Proof Motor | 0.25kw~1600kw |
| Brake Motor | 0.12kw~200kw |
| DC Motor | 1kw~1500kw |
Product Parameters Outline Drawing
Detailed Photos
Packaging & Shipping
