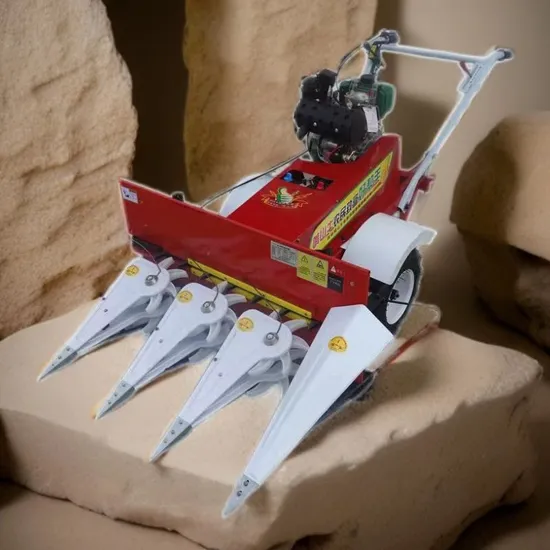

Household Mowing Grain Forage Harvester Reed Cutting Table

Product Description

Product Description
Mower, also known as wheat and rice harvester, pepper harvester, this machine is a new product developed by our factory, the product is simple, easy to use, small, light weight, small size, with Jf68 walking tractor can be used, can harvest rice, three wheat and other single upright crops. Harvest 2-3 acres per hour.
The cutting machine is composed of two parts: a matching host machine and a cutting machine. It is mainly used for harvesting wheat, rice and other platycodon crops, suitable for platform topography, plant height of 0.5~1.5 meters, stem diameter (less than 45°) wind less than 4, non-rainy day operation. The power output shaft of the cutter is transmitted to the cutting table gearbox through the transmission shaft, and is transmitted to the eccentric crank sliding frame mechanism through the transmission claw clutch and a pair of bevel gears to drive the cutter, and is transmitted to the drive shaft of the conveyor chain through the sprocket chain, thereby driving the movement of the upper and lower conveyor chain. The straw belt is driven by the star wheel of the straw lifter. The motion of the star wheel of the grass lifter is driven by the tooth extraction of the conveyor chain.
The mower is a kind of mechanical equipment specially used for harvesting grass and grain. It has the characteristics of simple structure, easy operation, small size, light weight, low energy consumption and stable performance. It can spread the cut plant straw on the stubble to form a lap of ear and tail, which is easy to dry and pick up the subsequent harvest. The emergence of the winder has greatly improved the efficiency of agricultural production, especially in the complex terrain conditions such as mountains and hills, and its applicability and efficiency are particularly outstanding.
Detailed Photos

Product Parameters

Adapt to different terrain harvesting

Improve mechanical efficiency

Reduce labor intensity

Quickly improve production efficiency
