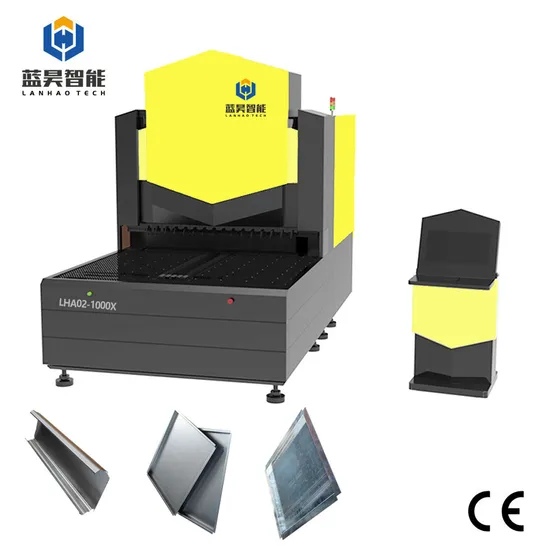

Automatic CNC Press Brake 1000mm Flexible Folding Machine for Metal Panel
| US$40,000.00-120,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LHA-1000X
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Transport Package
Pallet
Specification
1000XC
Origin
China
Product Description
1 Equipment appearance 1.1 Equipment Outlook 2 Technical parametres| LHA-1000X-02 Technical parameters | |
| Loading method | Suction cup |
| Worktable structure | Brush |
| Max. bending speed | 0.2 second/time |
| Max.bending width | 1000mm |
| Max.Bending size | L1000mm W1000mm |
| Max. Bending height | 170mm |
| Rated voltage | 380V |
| Total power | 25KW |
| Average power | About 1.1KW |
| Noise decibels | About 50 db |
| Machine size | L285cm W150cm H280cm |
| Total weight | 7 tons |
| User operating environment | Win7 or above operating system |
| Max. Bending width | UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold plate 1.2mm UTS 265N/mm2 aluminium plate 1.6mm |
| Min. Panel thickness | 0.35mm |
| Four sides forming, min. Inner size | 140mmx210mm |
| Double sides forming, min. Inner size | 140mm |
| Axis | Standard synchronized 9 axis |
| CNC system | Lanhao Intelligent | PC-BASE self-developed 9 axis+ synchronized full servo CNC control system. |
| Servo motor | Joint R&D | Joint R&D, perfectly matching Lanhao control system. |
| Bearing | NACHI | Japan NACHI, bearings diameter up to 16mm. |
| Screw rod | Nanjing Technical Equipment | 8020 heavy type grinding grade screw rod. |
| Line rail | Nanjing Technical Equipment | Nanjing Technical Equipment heavy-duty high-precision P3 class 55 roller type line rail. |
| Lathe bed | Lanhao Intelligent | Self-developed high-grade casting machine body, using high-grade QT500-7 and gray iron 250 casting. |
| Tools | Lanhao Intelligent | Lanhao patented tool. |
| Pneumatic accessories | Japan SMC/Taiwan AirTAC | Japanese/Taiwanese brands |
| Reducer | Joint R&D | High-precision helical tooth planetary reducer |
| Coupling | TECMEN | Sino-German joint venture brand |
| Oil system | Taiwan Yuxiang | Taiwan brand |
| Suction cup | Airbest | Oil-proof material. |
4.Factory View
5.Application
6.Finished Workpiece
7.Automatic Load/Unload
