OEM Customized Car Seat Slider/Vehicle Seat Slide Rail for Auto/Truck/Bus Parts

Product Description

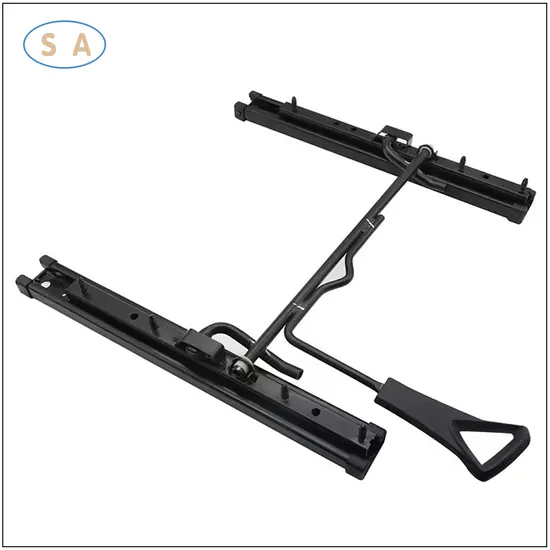

Long Double Lock Car Seat Slider Vehicle Rail 505mm Seat Movement Slide Rail Product Description
This Seat Slider Mounting Kit (non-tabbed) By Shapex allows for the adjustment of your racing seat's
position. Double locking mechanism increases slider stability for increased safety. Designed to mount
between the seat side-mount bracket and floor of the vehicle.
Auto seat slider is used on the seat in the auto, forklift, construction equipment, tractor, excavator,
bulldozer etc.
1, Flat moving from the front to the rear.
2, The stroke length from 0-220mm, and it can be changed as per requirement.
3, Double lock with handle
4, Can be mounted on the seat of a truck, car, excavator,etc
5, Installation dimension, various size design.
Material: 2mm steel Surface treatment: black powder coating.

Color	Black or customized color
Application	Car Seat Rail
Stroke	0-220mm/Custom Length
Material	Steel
Thickness	2mm
Surface Treatment	black powder coating

Material	SPCC,CRS,SPHC,SGCC,SECC,Iron, Steel,Carbon Steel,Stainless Steel,Aluminum,Alloy steel,Copper, etc
Material type	Steel plate, Profile steel, Square steel, Pipe, Tube, Bar, Wire
Design	Design drawing as per your idea, produce as per your drawing. Copy products as per your original sample.
File format	CAD,DWG,3D, Solidworks, PDF,JGP etc
Mold	Making mold if needed, the customer owns the mold
Manufacture process	Shearing, crimping, laser cutting, bending, fine blanking, stamping/pressing, deep drawing, rolling, spinning, drilling, tapping, riveting, die casting, wire-electrode cutting, Forming, other services as per your request
Welding	Laser welding, electrode arc welding, MIG/TIG, resistance welding, beam welding, Spot welding, Other welding processes as per your request
Surface	Powder Coating, electric-plating, anodizing, polishing, wire Drawing, electrophoresis, hot Dip Galvanized, etc.
Engraved logo	Engrave logo by laser, Engrave logo by stamping, etc
Valued service	Assembling, custom packing, other services you needed

Technical requirements:
1. The slide rail card board should be able to slip into any gap of the sliding rail fixed part in the moving
area without blocking the phenomenon;
2. The unlocking force of sliding rail is 30~ 80N.
3. Sliding rail sliding resistance ≤6.5 N;
4. Internal and external rail transit clearance ≤ 0.2mm;
5. Sliding rail locking force≥2000N;
6. Surface treatment: spray (black flat light), no rust on the surface, scratches and other defects;
7. After 5,000 sliding cycles of the slide track, the functions of the slide rail shall not be damaged;
8. The total stroke of the slide is 140mm, which is 80mm forward and 60mm backward.

We focuses on the production of seat angle adjusters, seat sliding rails, seat lifters, seat dampers, and seat frames, external punching, drawing, and processing, and the development manufacturing of mould, etc. With superior knowledge of industry development trends, we continue to seek better service modes to meet customers' personalized demands. We also introduced automatic punching equipment and angle adjusters, such as the 10T-400T for the assembling line and for mould production to add stability and boost the enterprises' core competitiveness.
We can produce according to the drawings of customers. Our Import and Export Department have many years experiences of foreign trading and our products are mainly exported to the United States, Denmark, Italy, Russia, Australia, Iran, Pakistan, South Africa etc.Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with domestic and overseas, new and old customers and establish eternal friendship to create a bright future. Sincerely welcome your drawings and samples or any other kinds of designs, our team will try the best to serve you and satisfy all the requirements you have.
Quality First, Price Best, Service Foremost!
We assure you of our best services at all times!
If you are interested in the product, please click " SEND " for more details.
