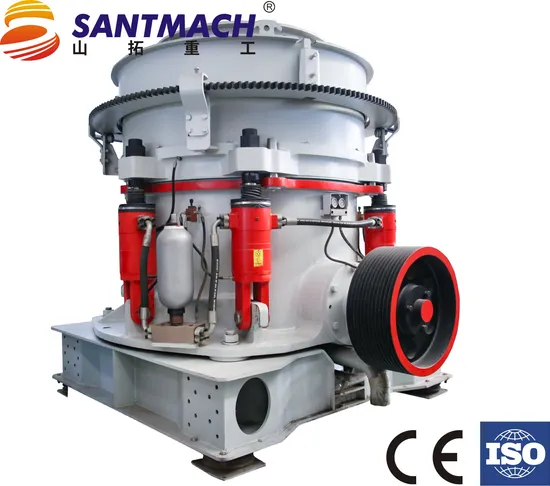

Aggregates River Stone Pebble Hard Rock Basalt Iron Ore Multi Cylinder Hydraulic Cone Crusher for Construction

Product Description

Detailed Photos
Product Advantages 1. Optimization design of ship form frame structure, the low vehicle chassis, compact and reasonable structure, modular assembly structure, small turning radius and convenient transporation.
2. Folding type feeding bin, hydraulic support guard board, easy and reliable operation.
3. The control cabinet equips with the advanced words touch control screen, PLC control system, ensureing the function of starting, process adjustment, misoperation tip and protection, electrical control operation, fault and safety tip.
4. The feeder can presort fines, automatic design for silo door, controlling the direction of dividing material.
5. The angle of conveyor is adjustable, and the conveyor can be turned and folded, extending operation conditions, easy for transporation.
6. Adopt stream-line design for vehicle structure, compact and reasonable mechanics optimization structure.
Product Parameters

Model	Cavity	Standard Type		Short Type		Power (kw)	Capacity (t/h)
		Feeding Size (mm)	Min Discharging Size (mm)	Feeding Size (mm)	Min Discharging Size (mm)
HPS200	Super coarse					132-200	90-250
	Coarse	185	19	76	10
	Medium	125	17	54	6
	Fine	95	13	23	6
	Super Fine			10	5
HPS300	Super coarse	230	25			180-250	115-440
	Coarse	210	20	75	10
	Medium	150	15	50	8
	Fine	105	10	20	6
	Super Fine			20	6
HPS400	Super coarse	295	30			280-355	140-630
	Coarse	250	25	90	10
	Medium	195	20	50	8
	Fine	110	14	40	6
	Super Fine			30	6
HPS500	Super coarse	330	30			355-450	175-790
	Coarse	285	25	90	13
	Medium	200	20	55	10
	Fine	133	16	40	8
	Super Fine			35	6
HPS800	Super coarse	353	32			550-630	260-1200
	Coarse	297	32	155	13
	Medium	267	25	92	10
	Fine	219	16	33	6
	Super Fine

Product Description Product Introduction:
The cone crusher is the most widely used crushing equipment in crushing operations, and all countries in the world attach great importance to its improvement work. Over the years, the majority of workers and technicians in China have done a lot of work to improve and seek a new type of crushing equipment with simple structure, convenient use, good performance and high efficiency.
Working Principle:
These include improvements to spring-loaded cone crushers and the design, manufacture, testing and application of hydraulic cone crushers. The shortcomings of the old spring cone crusher; the adjustment of the discharge port is inconvenient; due to the large spring stiffness when the iron is over, the crusher overload factor is large, and it is difficult to remove the non-broken objects that are blocked in the crushing cavity. The hydraulic cone crusher overcomes the above disadvantages more satisfactorily. In recent years, China's vast number of workers, engineers and technicians have summed up China's more than ten years of production practice experience and critically absorbed foreign advanced technology, designed, manufactured and applied single-cylinder and multi-cylinder hydraulic cone crushers. Improvements and research are still ongoing.
Certifications Company Profile
After Sales Service
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
