Bottom Homogenizer Paste Syrup Vacuum Emulsifying Mixer, Cosmetic Cream Gel and Lotion Ointment Homogenizing Pharmacy Machine

Product Description

Bottom Homogenizer Paste Syrup Vacuum Emulsifying Mixer, Cosmetic Cream Gel and Lotion Ointment Homogenizing Pharmacy Machine Product Description 1, Vacuum Cosmetic Cream vacuum homogenizer mixer machine the material contacted part is made by SS316L, inside and outside of the equipment are with mirror polishing and get to GMP standard. complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect.
2, Polytetrafluoroethylene scraping board cater to body of blending groove and scrape out viscosity material on tank wall.
3, Homogenizer is installed on tank bottom to increase motor power more thoroughly and strongly. During few production, It can exert homogenizing effect fully.
4. The homogenizer is frequency conversion timing control and can setting the homogenizing time, it adopts the most advanced German-technology, it can get an ideal emulsifying effect. the speed of high emulsification is 0-3000r/min, you can choice highest rotate speed up to 4500 r/min5,Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick product; tank body and pipe surface mirror polishing 300MESH (sanitation grade) accords with Daily Chemical and GMP regulation.
6. Finished products can be discharged by vacuum or tilt the tank, or by pump. Technical Parameters:

Model	Working capacity	Stir motor/speed		Homogenizer motor/speed		Vacuum pump/Kw	Water pot volume	Oil pot volume	Oil/water pot stir speed
RHJ-10L	10L	0.37Kw	0-63RPM	1.1Kw	0-3000RPM	0.75	7L	4L	960RPM
RHJ-20L	20L	0.75Kw	0-63RPM	1.5Kw	0-3000RPM	0.75	14L	8L	960RPM
RHJ-50L	50L	1.1Kw	0-63RPM	2.2Kw	0-3000RPM	1.5	35L	20L	960RPM
RHJ-100L	100L	1.5Kw	0-63RPM	3Kw	0-3000RPM	1.5	70L	40L	960RPM
RHJ-200L	200L	2.2Kw	0-63RPM	4Kw	0-3000RPM	2.2	140L	80L	960RPM
RHJ-300L	300L	3Kw	0-63RPM	5.5Kw	0-3000RPM	2.2	210L	120L	960RPM
RHJ-500L	500L	4Kw	0-63RPM	7.5Kw	0-3000RPM	2.2	350L	200L	960RPM
RHJ-1000L	1000L	5.5Kw	0-63RPM	11Kw	0-3000RPM	3.0	700L	400L	960RPM

Application:
1. Daily Chemical & Cosmetics Industry:
Such as baby cream, skin cream, face cream, shaving cream, shaving cream, lotion, shampoo, toothpaste, cold cream, sunscreen cream,face cleanser, moisture cream, liquid soap etc;
2. Food Industry:
Sauce, mayonnaise, juice, cheese, oral, nutrition, infant food, chocolate, sugar , tomato paste etc;
3. Pharmacy Industry:
Paste, ointment, Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry:

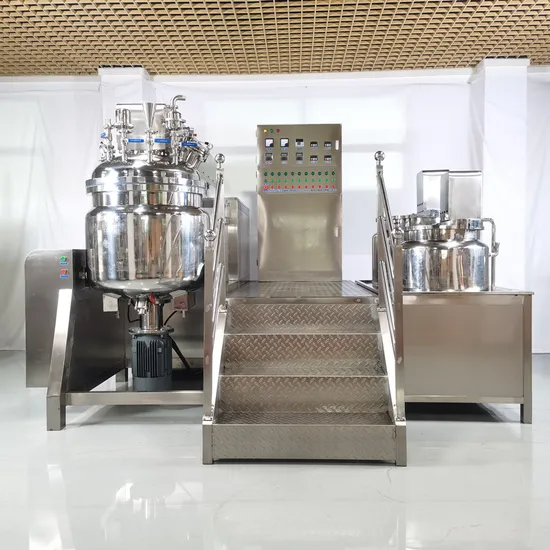

Latex, saponification products, paints, coatings, resins, adhesives, lubricants and the like. Machine Image:
Application Of Product:
GMP PROJECT:
Company information:
FAQ: 1. Q: How about the after sales service for Cosmetic Cream vacuum homogenizer mixer Machine?
A: We provide 2 years warranty for large equipment like full automatic Cosmetic Cream vacuum homogenizer mixer Machine line. provide 1 year for small Cosmetic Cream vacuum homogenizer mixer Machine, such as small batch Cosmetic Cream Homogenizer Machine series. Machine guaranty and technical support lifetime for all kind of Machine. All machine's parts can be replaced for free within the warranty period if broken (excluding error operation).
2. Q: Is it difficult to install the Cosmetic vacuum homogenizer mixer Machine?
A: The work shop should prepare full facility such as power and air compressor. For the first installation, engineer will be sent to set machine and do the machine training as long as manual instruction. For the further problems come out, we will provide solution video/photo instruction as well.
3. Q: What's the Cosmetic Cream vacuum homogenizer mixer Machine lead time?
A: For the standard machines, we can delivery within 35 days. If it is customized by customer(OEM), the lead time is 40-50 days.
4. Q: How can you control the quality?
A: We have a responsible QC department that strictly controls quality, all of our machines will be tested during production process, and will be tested again before packaging. wooden packaging is strong and safety for long delivery.
5. Please feel free to contact us with any question. We will provide you with one-stop service
Our Services:
1) Provide 24-hour service hotline for Cosmetic Cream vacuum homogenizer mixer Machine.
2) Reply and find out solution within the shortest time according to customer's requirement.
3) Provide on call service to help customer solve problems.
4) Provide free of machine installation as well as commissioning, and inform customer how to do the machine maintenance.
5) Prepare customer's feedback tracking within one week after machine installation until meet customer's satisfaction.
6) Provide one year guaranty and lifetime maintenance.
7) One-stop service for workshop decoration, selecting machines and installation service etc.
