125t/4000 Sheet Metal Bending Machine Sheet Metal Press Brake Electric Press Brake

Product Description

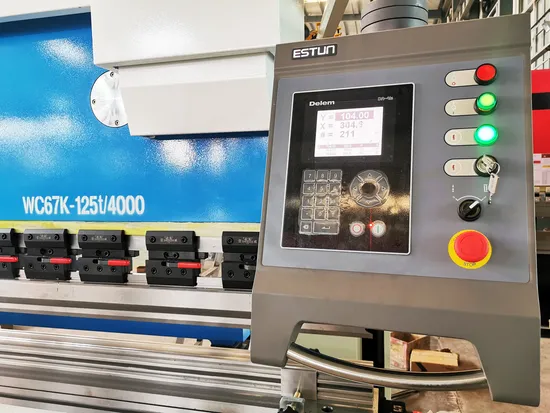

Products Description AHYW YWT SERIES CNC BENDING MACHINE Press brake, also known as a brake press, is a machine tool for bending sheet and plate material, most commonly sheet metal. The DA41 servo drive cnc press brake is primarily used for the bending and processing of stainless steel, iron, copper and aluminum, and features a high production efficiency and bending accuracy. The DA41 servo drive cnc press brake forms predetermined bends by clamping the workpiece between a matching punch and die in different shapes, so that metal can be bent into various shapes. Features Anhui Yawei YWT series allow us to design a product that reacts in the most appropriate and responsive way to the mechanical solicitations, therefore guaranteeing a stable structure, thus a higher precision in bending. This feature is even enhanced by a system of manual crowning. Worth mentioning is also the possibility to add options and upgrades on the configuration, at later stage. Constructed of high quality parts and offering serious reliability , Y-axis Torsion bar syncro technology with high approach, bending and return speeds. Details Images DELEM DA41S Controller 1. LCD display with high definition
2. Slider stop position control
3. Back gauge control
4. Angle program
5. Mold parameters setting
6. 100 procedures
7. Each procedure has 25 process
8. Panel type installation
9. Servo control; Frequency change control; Dual speed AC control France Schneider Electrics Stable France Schneider electrics to improve the positioning accuracy of X, Y Axis 42CrMo Toolings Each machine will be equipped with one set of top punch with segmented and one set of Multi V Die with different opening for various thickness of metal plate Mechanical Fast Clamps Mechanical fast clamps are equiped to change dies more convenient and safe Back Gauge AHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best
repetitiveness and high precision in axes positioning. HIWIN Ball Screw & Linear Guide HIWIN High Precision Backgauge is equipped with fine ball screw and guide linear Back guage stop finger , X axis adjust , linear drive keep best precision (dual linear guide optional ) Backgauge Stopper Fingers Back gauge stopping finger, with manual transverse movement Manual Mechanical Crowning Table We have the crowning table by hand and motor. The structure of the press brake reflection compensation crowning table can promise the bending precision for angle and strightness when you bend the workpiece KACON Pedal Swich Movable KACON pedal switch from South Korea to improve the service life and operational sensitivity Safety Fence Protective guards on each side to protect the user during operation Production Process Recommend Products Packing&Shipping

Packaging
Size	(L) * (W) * (H)
Weight	T
Packaging Details	The normal package is water proof plastic package, the optional ply wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time. If container is too tigher, we will use pe film for packing or pack it according to customers special request.

Shipping
Means	by sea, by rail
Container	20' GP 40 'GP 40' HQ or OT RT
Shipping Details	According to the size and weight of machines, we will provide our customers with optimized shipping solution.

Facilities & Equipment 8m CNC large boring&milling machines 12m Large CNC Borning&milling machine for manufacture 8m, 10m, 12m sheet metal guillotine cutting machine and large metal sheet
press brake bending machines Heat treatment for main frame of Sheet Metal Machinery, mainly for Synchro CNC Pressbrake, Fiber laser Cutting Machines
