0415-1 5V 6V 12V DC 3mm Stroke Small Push Pull Electromagnet Solenoid

Product Description

PRODUCT FEATURES

JSO-Serial Push Pull Solenoid/Open Frame Solenoid/Linear Solenoid
1. Open frame structure with mounting holes.
2. Push or pull type, linear motion, reset by plunger spring.
3. Dc power supply, standard voltage 12V or 24V, we can custom the voltage(3~24Vdc) as you need.
4. Connecting to power, plunger will pull in or push out, when power is off, plunger will reset by spring.
5. Electric Duty cycle(ED): 10%~100%, which depend on your power on time and off time in using.
6. Application: electronic machine, printing machines, robot arm, vending Machine,storage cabinet, sharing bicycle,subway gate etc.
7. Different models are available.
8. 20 years of design and produce experience,OEM/ODM is acceptable,
WELCOME TO INQUIRY US.

TECHINCAL DATA

Products Data Sheet
Product name:	Push Pull Solenoid	Insulation Class:	B
Model:	JSO-0415-1-12V	Hi-Pot test:	AC750V/2S
Frame Size:	L14.3xW10xH8.3	Service Life:	>500,000 Times
Stroke:	3 mm	Lead time:	5 days if have stock
Action Form:	Pull	Sample Order:	Acceptable
Voltage:	DC 12v/24v or customzied	MOQ:	5 PCS
Duty Cycle:	10%~100%	Warranty:	2 Year
Install Thread size:	M2	Origin:	Ningbo, Zhejiang
N.W.:	6 g	Surface:	Electroplating
Certificate:	CE/ROHS	Material:	steel & enameled wire

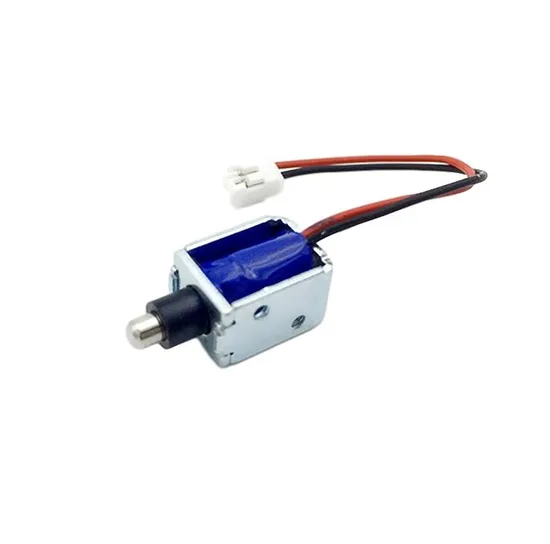

PRODUCT PHOTOS

PRODUCT DRAWING

Customized design is welcomed.

PRODUCT SERIES

FIVE STAR REVIEW

CERTIFICATE

OUR WORKSHOP

COOPERATION CLIENTS

WIDELY APPLICATOIN

FAQ:
Q: Are you trading company or manufacturer? And where is your factory located?
A: We are factory. Our factory is located in Ningbo City, 2 hours from Shanghai Airport by car.
Q: Do you have CE approved?
A: Yes, we have CE and ROHS certificate
Q: How to choose a suitable electromagnet quickly?
A: Please provided us following parameters:
Act form: pull or push type?
Frame Dimension?
Stroke,
Duty cycle,
Cable length and connector,
-------------------------------
For example: You can say I want purchase open frame solenoid as below:
Open frame solenoid
Action Form: Pull type
Frame Size: L37xW26xH20
Stroke: 10 mm
Beginning Force: 100g
Voltage: DC 12V,2A
Duty Cycle: 10%, Energized time: 6S, de-energized time: 60s
Lead Wire: side out 10 cm, with XH2.54 male connector.
Install Thread size: M3
---------------------------------------
Q: How long is your delivery time?
A: Samples ready for delivery in 3 days if the goods are in stock, or in 7-10 days for for customized product. It is according to quantity.
Normally, you will get our samples in 7-10 days after payment.
Q: Can you customized electromagnet?
A: Yes, you are welcome.
Q: Can I print my Brand/Logo on the product?
A: Yes, free of charge.
