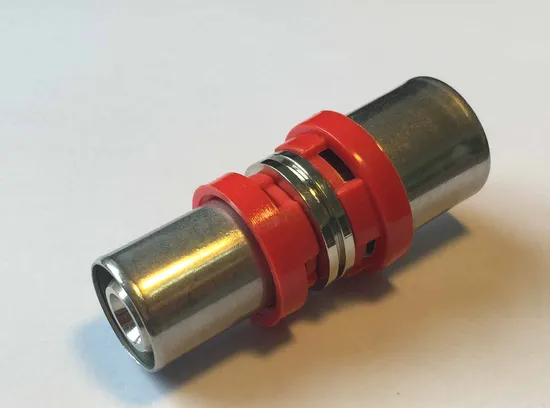

Multyjaws Radial Press Fittings for Multilayer Pipe
| US$0.58 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
YC-00803
Connection
Press
Structure
Universal
Flexible or Rigid
Rigid
Material
Brass
Standard
Standard
Size
16,20,26,32
Connection Speed
Fast
Connection Ways
Press
Field of Application
Cold or Hot Water Supply for Sanitary or Heating S
Transport Package
Carton
Trademark
YSINCERE
Origin
Ningbo, China
HS Code
7412209000
Production Capacity
100, 000PCS/One Year
Product Description
FIELDS OF APPLICATIONRadial press fittings are used for supply of hot and cold water in sanitary and heating installations.
The geometry of the fittings allows an excellent coupling between pipe and fitting after pressing and the plastic inlsulation ring
windows allow to check the correct insertion of the pipe. Two O-rings guarantee the seal and reliability over time.
MATERIAL USED
1) Hot-stamped UNI EN 12165-CW617N-CuZn40Pb2
2) Brass bar UNI EN 12164-CW614N-CuZn39Pb3
3) O-ring NBR or EMDM PEROXID 70 available
4) Ring(insulating) NYLON
5) Bush Stainless steel- AISI 304
REDUCED STRAIGHT FITTING
| SIZE | THICKNESS | BOX |
| 18x16 | 2,0/2,0 | 100 |
| 20x16 | 2,0/2,0 | 100 |
| 20x18 | 2,0/2,0 | 100 |
| 26x16 | 3,0/2,0 | 40 |
| 26x20 | 3,02,0 | 40 |
