Lab Two Roll Mill/Water Cooling System for Rubber and Plastic

Product Description

Lab Two Roll Mill ApplicationThe lab two roll mill is used to mix the raw material and additional agents uniformly for testing, and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color which specified by the customer.
Lab two roll mill is widely used in rubber, plastics industries. Such as polyolefin, PVC, film, coil, profile production and polymer blending, pigments, masterbatch, stabilizers, stabilizers and so on. The main purpose is to test raw materials's physical properties change and contrast after mixing. Such as color dispersion, light transmission, substance table.

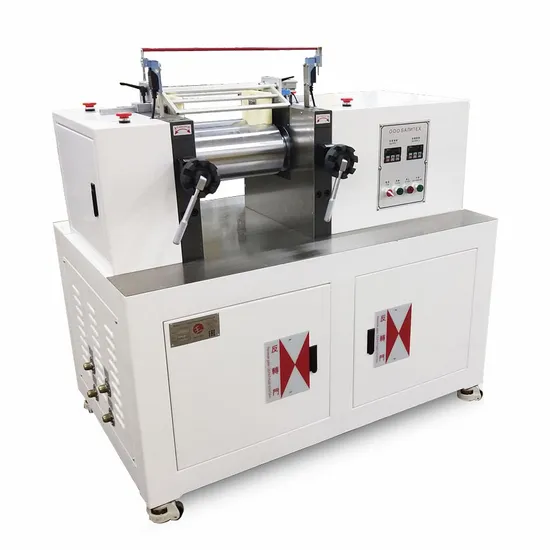

Technical Parameter Of XH-401CE lab two roll mill
Applicable materials	PP, PE, PVC, rubber, etc.
Mixing capacity	1-5kgs or designated
Roller diameter	220mm or designed
Roller width	620mm or designed
Roller gap	0.1 - 10mm (adjustable)
Speed of roller	0-30r/min
Heating mode	electrical heating
Safety device	protective cover, safety lever, reverse door, emergency stop button
Motor	1HP (2 Sets)
Power supply	380V/50Hz/3 phases or Customerized

The size of the rollers and equipmentcan be increased according to customer's requirement.
Main Features of lab two roll mill
1) Built-in heater, together with LED temperature controller and high-precision .
2) Taiwan Bangcheng motor, low noise, stable operation and good durability.
3) A lot safety devices guarantees the operator's safety .
4) Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
5) Speed and speed ratio can be adjusted for both roller.
6) We can provide customized production to satisfied customer's specifical requirements.
Detailed Images
1. Alloy steel roller, High wear resistance, no deformation, high overall hardness, 0-to-0 grinding
2. Rubber and plastic is different. We will suggest the roller to you according to your material.
3. The size of the rollers and equipmentcan be increased according to customer's requirement.
1. Safety Device: Reversible rollers (by kicking at the door of the machine). Safety switch. Protective cover.(It can add some other safety device according to your requirements)
2. It adopts Japanese RKC, LED temperature controller and high precision sensor, Accurate and stable temperature, Speed of roller are easy to control by two frequency converter.
Picture is made of Rubber mixing
Why Choose UsOur company
Guangdong Xihua Machinery Co., Ltd. is a research and development, manufacturing, sales, service in one of the laboratory equipment high-tech enterprises.
The company was founded in 1995, headquartered in Dongguan, Guangdong Province. The factory covers an area of 15,000 square meters, with professional work team and technical support. The company has passed ISO quality management system certification and CE EU safety certification.Our strength
The company has more than 20 years of professional experience and can provide you with a complete set of solutions. With first-class quality, affordable price and excellent after-sales service, won the trust of users.
1)More than 20 years of professional experience
2)More than 6,000 customers form all over the world
3)24-hours service
4)Lifelong after-sale service
5)Customized production
6)Quality assurance
Our customers
Certifications
Packing & Delivery
