Corrugated Cardboard Plant Vacuum Cassette Fingerless Single Facer Machine

Product Description

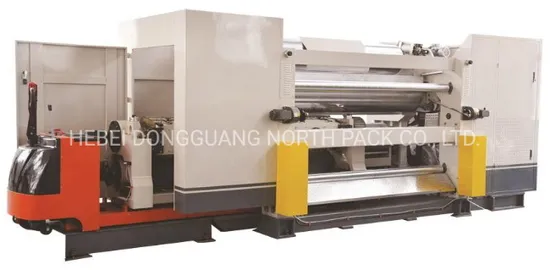

Corrugated Cardboard Making Vacuum Fingerless Single Facer Machine
Structural Features: Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan. With silencer, air supply and electric control focus on the same operation counters, not less than 1.5m away from the main engine, operation side is totally closed and full guarding. Engine base and wall plate: iron casting structure, thickness of the wall plate: 150mm, adopt independent speed changing box, and gimbal transmission. Diameter of main corrugated roll: ¢320mm, and are made of 45# steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding, the rigidity of surface is higher than HRC58. Corrugated roll and pressure roll of pivotal section adopt heat resisting bearings which are manufactured by TWB Pressure roll diameter: ¢320mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 45# medium carbon steel, hardening and tempering Glue wall plates adopt sliding structure, pneumatic control glue supply and glue back, diameter of the applicator glue roll : ¢242mm, surface are treated by polished and chrome plated. Press roll adopt ¢160 cylinder Pre-heater roll adopt seamless steel pipe which is produced by Tianjin Iron & steel group co,.ltd. Diameter ¢400mm, are all connected with metal soft pipe. Technical parameter: Working width: 2200mm Operation direction: left or right Design speed: 150m/min Temperature scope: 160-220 C Steam pressure: 0.8-1.3Mpa Flute profile (UV type or UVV type) Parameter of Main roll: Diameter of corrugated roll: ¢320mm Diameter of pressure roller: ¢320mm Diameter of applicator glue roll: ¢242mm Diameter of preheater roll: ¢400mm Motor parameter: Main driving motor: 15KW Normal voltage: 380V 50HZ
Continues (S1) working system Wind suction motor: 15KW Normal voltage: 380V 50HZ
Continues (S1) working system Glue adjustment reduction box: 100W Normal voltage: 380V 50HZ
Short time (S2) working system Glue adjusting gap motor: 2.2KW Normal voltage: 380V 50HZ
Short time (S2) working system Glue pump motor: 2.2KW Normal voltage: 380V 50HZ
Continues (S1) working system
Main bought-in parts and raw material and origin

No	Main parts name	Origin	Raw material
1	Wall plate and based wall plate	Self	HT200
2	Transmission case	Local factory	QT200
3	Rotary joint and metal soft pipe	LUGUANQIU, Shangdong
4	Main driving motor	Hengshui
5	Bearing	HRB, ZWZ, LYC, WANXIANG	Except corrugated roll and press roll bearing
6	The shaft with seat	Wuhuan, zhejiang
7	High pressure fan	Yinfa, shanghai
8	Cylinder	CHINT
9	Magnetic valve	CHINT
10	Drain valve	Xusheng, zhejiang	Stainless steel
11	Relay	CHINT
12	Inverter controller	Yingweiteng, shenzhen (ENG)

Wearing parts and spare parts list

No	Main parts name	Type	Qty
1	Wind suction copper sheet		4 sets
2	Paper-shaving sheet of pressure roller		4 sets
3	Scraping glue plate		2 set
4	High temperature lubricating grease		1 barrel
5	Metal soft pipe		1 set thick 1 set thin
6	Valve	¢25 ¢40	1 set of each type

Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
Our Services 1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our
professional machine making team and strict QC team, we will
also send you our manual and video, what you need to do is just
learn some basic thing such as machine maintenance.
