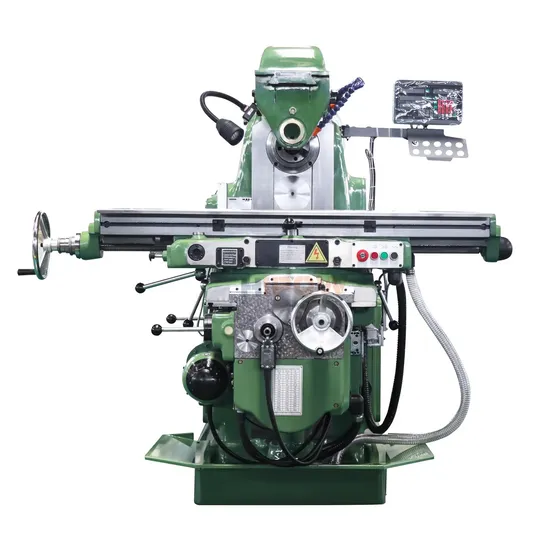

New X6132 Horizontal Milling Machine Manual Universal Milling Machine for Metal
| US$9,500.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Max. Table Load(Kg)
500kgs
Spindle Taper
ISO50
CNC or Not
Normal
Table Size
1320*320
Table Travel
700/255/320(Manual) 680/244/300(Auto)
Color
Custom-Made
Transport Package
Export Wooden CTN
Specification
2294*1770*1904
Trademark
JYME
Origin
China
Production Capacity
1000
Product Description
Technical Data of Knee-type Milling Machine
| SPECIFICATION | UNIT | X6132 | X6140 |
| TABLE SIZE | MM | 1320×320 | 1600×400 |
| NO./WIDTH/DIS. OF T-SLOT | MM | 3-18-70 | 3-18-90 |
| MAX.LOAD OF TABLE | KG | 500 | 800 |
| SPINDLE TAPER | | ISO50 | ISO50 |
| SPINDLE SPEED RANGE | R/MIN | 30-1500 | 30-1500 |
| SPINDLE SPEED STEP | STEPS | 18 | 18 |
| TABLE TRAVEL(X,Y,Z) | MM | 700/255/320(MANUAL) 680/244/300(AUTO) | 900/315/380(MANUAL) 880/300/360(AUTO) |
| CUTTING FEED SPEED | MM/MIN | X :23.5-1180; Y: 15-786; Z: 8-394 | X,Y: 23.5-1180; Z: 8-394 |
| RAPID FEED SPEED(X,Y,Z) | MM/MIN | 2300/1533/770 | 2300/2300/770 |
| DISTANCE BETWEEN SPINDLE AXIS AND TABLE SURFACE | MM | 30-350 | 30-410 |
| SPINDLE MOTOR POWER | KW | 7.5 | 11 |
| OVERALL DIMENSION(L×W×H) | MM | 2294×1770×1904 | 2556×2159×1770 |
| MACHINE WEIGHT | KG | 2800 | 3850 |
Main Feature ★ ISO50 ,5HP ,Swivel-Head Universal Milling Head with 18 Steps Speed Spindle
★ XYZ 3 Axis Rectangel Rails, XYZ 3 Axis Auto Feed
★ 1325x320mm size worktable ,700/255/350mm XYZ travel
★ 11Kw Heavy duty,High Speed Motor
★ Machine Body ade by HT250 high strength cast iron
★ Worktable surface and rails hardened by supersonic frequency quenching
★ Rectangle Guideways withstand larger overturning moment
Standard Accessories of Knee-type Milling Machine
Horizontal milling cutter abor subassembly,
Milling chuck,
Milling cutter arbor,
Taper sleeve,
Double ended wrench,
Single ended spanner,
Inner hexagon spanner
Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
