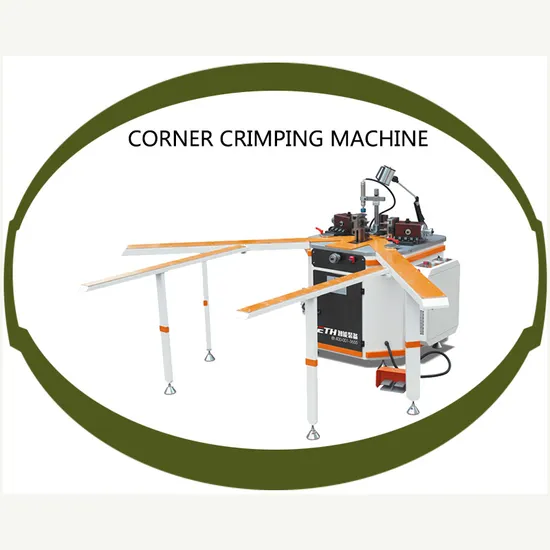

Aluminum Window Frame Hydraulic Corner Crimping Machine 220V

Product Description

Jinan SETH Intellighent Equipment Co.,Ltd.
aluminum window frame hydraulic corner crimping machine 220v Product Description
1.Product Feature:
1.It is appropriate for corner-connerctor punching and riveting connection of aluminum door and window curtain wall.
2. This computer is the ultra-modern R&D and layout mannequin of our company, which is the first in the industry, with steady performance, high precision and excessive efficiency.
3.The computing device is managed through program, hydraulic device provides angular power, and has excessive punching and riveting force, quick speed and steady operation.
4.The perspective placing knife has a large adjustment vary up and down, is handy to adjust, and adapts to the perspective putting of greater and thicker profiles.
5.The the front positioning adopts lifting type, which is handy for taking and putting materials. 6.Double-point knife and step knife can be configured to make the angle energy higher

Power supply	380V 50Hz
Total motor power	3.0Kw
Rated pressure	20MPa
Operating pressure	0.6~0.8MPa
Air consumption	5L/min
Front positioning stroke	170mm
Backward cutter stroke	120mm
Adjustment range of front positioning	140mm
Adjustment range of angle cutter	160mm
Height of machined profile	160mm
Fuel tank capacity	40L
Oil pump size	10 "
Overall dimension	870×1200×1100mm
Weight	700kg

Detailed Photos
Relative Products
Company Profile

Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,upvc window and door machine,curtain wall and hollow glass processing machine equipment that can meet the needs of different clients, and can also be customized according to customer requirements of different grades of products.
Our company has rich experience in production and more than 10 national patents and passed ISO9001,SGS,CE certifications, excellent product design and development engineers, skilled production engineers, experienced production management team and after-sales service that providing you with a strong guarantee.
We have all kinds of equipment processing workshop, assembly workshop and quality inspection center, can independently realize the design of equipment, processing,assembly, test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine,milling machine,welding machine,corner cleaning machine.corner crimping machine,punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle,
Please join hands with SETH to lead intelligence.
