Vmc China Supplier Linear Guideway Small CNC Machining Center 3 Axis Bt30 Bt40 Spindle Xh7126 CNC Milling Machine
Basic Info.
Model NO.
XH7126
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.006mm
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Type
Vertical CNC Milling Machine
Guideway
Taiwan Linear Guideway
Worktable Size
800X260mm
X/Y/Z Axis Travel
450/320/400mm
Spindle
Bt40
OEM
Available
Delivery Time
One Month
Color
Customized
Voltage
Customized
Motor Power
3.7kw
Atc
12 Tools Atc
Spindle Speed
6000rpm
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

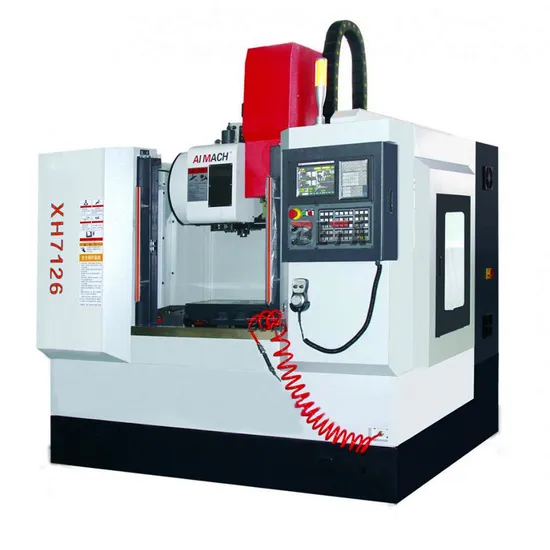

Vertical CNC Milling Machine Center with ATC 12 ToolsModel XH7126
| Item | Unit | XH7126 |
| Worktable size | mm | 800x260 |
| T-slot | mm | 14x3x80 |
| Max. loading capacity of worktable | kg | 200 |
| Worktable travel X*Y*Z | mm | 450/320/400 |
| Distance between spindle nose to table | mm | 90-520 |
| Distance between spindle centre to column surface | mm | 360 |
| Rapid moving speed X/Y/Z | m/min | 15/15/15 |
| Cutting feeding speed X/Y/Z | mm/min | 1-6000 |
| Spindle taper | BT40 | |
| Max. spindle speed | rpm | 6000 |
| Spindle motor power | kw | 3.7 servo |
| Position accuracy | mm | 0.008 |
| Re-position accuracy | mm | 0.006 |
| Automatic Tool magazine pieces | pcs | 12 pcs |
| Max.tools weight | kg | 8 |
| Max.tools size | mm | 80/150 |
| Time of changing tool | s | 4 |
| Overall size | mm | 2200*1900*2200mm |
| Machine weight | kg | 2200 kg |
Standard accessories:
GSK CNC controller
X/Y/Z axis servo motor
3-axis linear guide way
Taiwan BT40 spindle 6000rpm,
Taiwan 12 pcs tools umbrella type automatic tool changer
full enclosed protection cover
work light
alarm light
automatic cooling system
centralized lubrication system
Optional accessories:
Siemens/Fanuc CNC controller
The 4th axis dividing head
Chip conveyor
Spindle oil cooling
Spindle speed 10000 rpm
Tool measuring Renishaw tool setter
