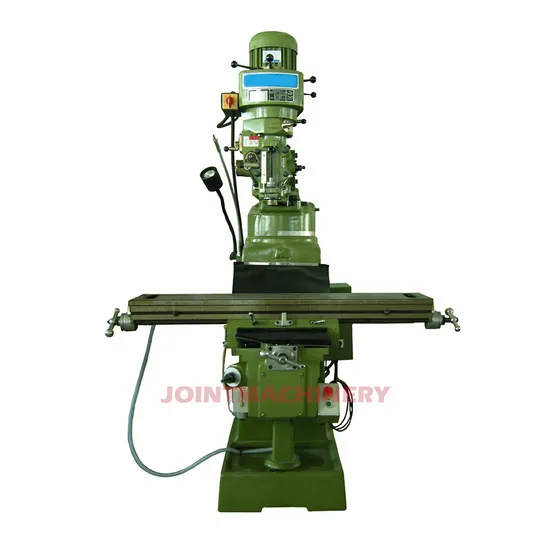

5ea/5eb Precision 5HP Nt40 Spindle Universal 3 Axis Milling Machine Factory Price

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm
X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

High Precision 3 Axis Milling Machine Vertical Type China Manufacturer

Item		Unit	5EA	5EB
Table size		mm	1370*280*90	1270*254*90
Travel	Longitude(X)	mm	1000	900
	Crossward(Y)	mm	385	395
	Vertical(Z)	mm	340	360
Travel of spindle quill		mm	127	127
Max diatance from the spindle nose to table		mm	470	400
Spindle	Rotation speed (Step speed milling head)	50HZ rpm	66-4530	66-4530
	Rotation speed (Step speed milling head)	60HZ rpm	80-5440	80-5440
	Taper	-	NT40	NT40
	Rated power	HP	5HP	5HP
Tilt angle	Forward and Backward	°	±45°	±45°
	Left and Right	°	±90°	±90°
Dimension		mm	1600*1800*2200	1500*1700*2150
Net weight		kg	1450	1450
