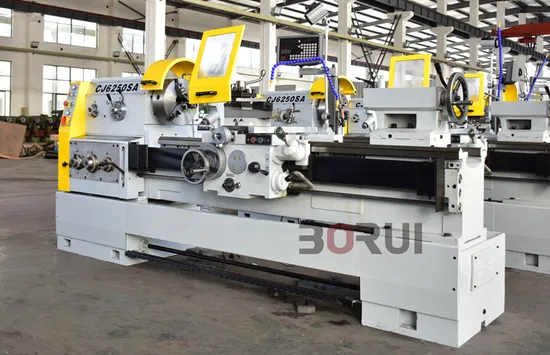

CS6250 Gap Bed Horizontal Metal Lathes Machine for Sale

Product Description

CS6250 Gap Bed Horizontal Metal Lathes For Sale On Craigslist For Sale In Kenya
Product Application
CF SERIES LARGE SPINDLE HOLE PRECISION LATHE:-Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
-Threading Inch, Metric, Module and D.P.;
-Perform drilling, boring and groove broaching;
-Machine all kinds of flat stocks and those in irregular shapes;
-Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
-Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
-There are hand brake and foot brake for users to choose;
-These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Product main technical parameters:

Specifications		UNIT	CS6240A/B	CS6250A/B
Capacity	Max.swing dia. over bed	mm	Φ400	Φ500
	Max.swing dia.in gap	mm	Φ630	Φ710
	Max.swing dia. over slides	mm	Φ220	Φ300
	Max. workpiece length	mm	750/1000/1500/2000/3000
Spindle	Spindle bore diameter	mm	Φ52(A)Φ82(B)
	Type of spindle nose	no	NO.6(Morse) 1:20 Φ90
	Spindle speed	rpm	24 steps 9-1600
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	75
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25x25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	93 kinds 0.028-6.43
	Z feed range	mm/r	93 kinds 0.012-2.73
	Metric threads	mm	48 kinds 0.5-224
	Inch threads	t.p.i	48 kinds 72-1/4
	Module threads	πmm	42 kinds 0.5-112
	Diametricpitch threads	t.p.i.π	42 kinds 56-1/4
	Weight	kg	1795/2050/	2050/2100/
			2250/2450/2850	2300/2500/2900

Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
