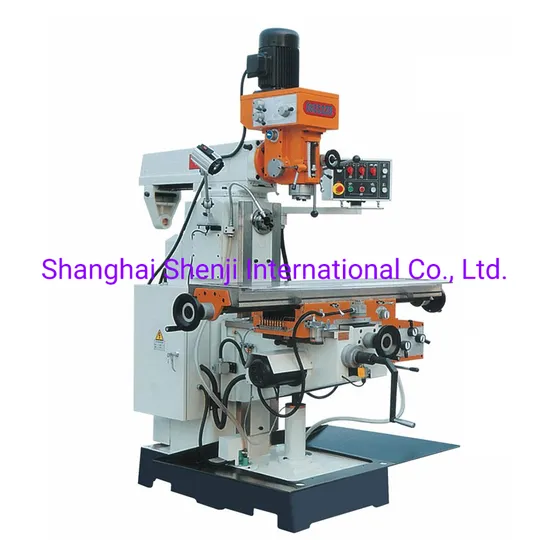

X6332C Turret Milling Machine
The Universal radial milling machine(X6332B/X6332C/X6332W/) is a broad-spectrum tool type milling machine, it can undertake vertical milling, horizontal milling, drilling and boring, reaming and grinding and other processing work.
These series machines can process various complex geometry parts, and especially suitable for the manufacturing of tool, clamps, moulds and textile industry.
The milling head of machine is installed in the front-end of the rocker can do the rotation of F-B±45ºand L-R ±90ºand the rocker can move front and back on the upper bed and can swing 360º.
The three directions guide rail pairs of the machine all have wear-resisting measures with high accuracy stability and long service life.

SPECIFICATIONS OF TURRET RADIAL HEAD MILLING MACHINE X6332
SPECIFICATIONS	X6332B	X6332C	X6332W
Spindle taper	ISO40(V) ISO40(H)	ISO40(V) ISO40(H)	ISO40(V) ISO40(H)
Diameter of quill	120mm	120mm	95mm
Distance from spindle to table	90-490mm	90-490mm	90-370mm
Distance from horizontal spindle to table	0-400mm	0-400mm	0-280mm
Distance from spindle to column	200-700mm	200-700mm	200-700mm
Spindle speeds	(16 step)80-7200r.p.m(V) 40-1300r.p.m(H)	(16 step)80-7200r.p.m(V) 40-1300r.p.m(H)	(16 step)80-5440r.p.m(V) 40-1300r.p.m(H)
Spindle travel	145mm	145mm	127mm
Feeding of quill	(3step)0.04 0.08 0.15	(3step)0.04 0.08 0.15	(3step)0.04 0.08 0.15
Max.drilling capacity of auto-feeding	Ø10mm	Ø10mm	Ø10mm
Head movement	±45°	±45°	±45°
Table size	1250×320mm	1250×320mm	1250×320mm
Table travel(Horizontal/Cross/Vertical)	600/300/400mm	800/300/400mm	600/300/280mm
Feeding range of longitudinal.cross travel	22-555mm/min	22-555mm/min	22-555mm/min
X,Y-axis Rapid feed speed	1080mm/min	1080mm/min	1080mm/min
Z-axis rapid feed speed	590mm/min	590mm/min	590mm/min
Z-axis motor power	750W	750W	750W
Max.weight of workpiece	300kg	300kg	300kg
T-slot Number/width/distance	3/14mm/70mm	3/14mm/70mm	3/14mm/70mm
Milling head moving(Vertical)	Rectangular rail	Rectangular rail	55°Dovetail rail
Cross slide way	Rectangular rail	Rectangular rail	Rectangular rail
Longitudinal slide way	Dovetail rail	Dovetail rail	Dovetail rail
Horse power for main motor	5HP(V) 2.2kw(H)	5HP(V) 2.2kw(H)	3HP(V) 2.2kw(H)
X,Y axis driving motor	750W	750W	750W
Overall dimension	1700×1500×2270mm	1780×1500×2270mm	1700×1500×2150mm
Packing size	1680×1600×2250	1680×1600×2250	1680×1600×2250
N.W./G.W.	1550/1650kg	1650/1750kg	1450/1600kg

Standard Accessories
1. Work lamp
2. Machine Vice
3. Milling Chuck
4. Draw bar
5. Tool & toolbox
6. Reduction sleeve
